Advanced Tooling Architecture

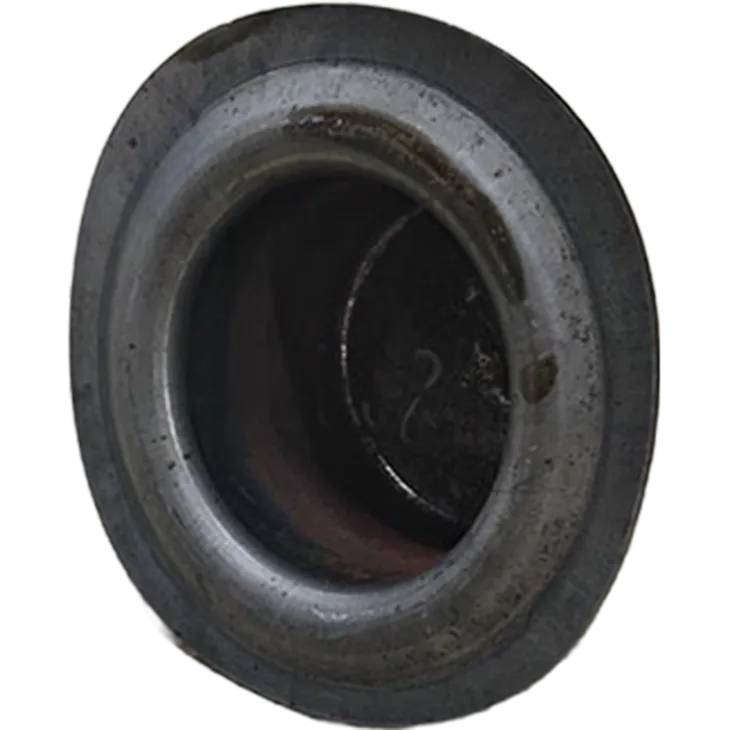

The integrity of a bearing seat depends on the precision of its seat diameter and the flatness of its flange. Our stamping die addresses these requirements through:
Concentricity Control: We utilize high-precision ball guide posts and bushings to ensure the punch and die alignment remains consistent, preventing lopsided wall thickness.
Stress-Relieved Tooling: All mold bases undergo specialized stress-relief processing to ensure long-term dimensional stability, even under the vibration of 500-ton presses.
Automated Lubrication Channels: Integrated oil grooves within the die structure reduce heat buildup during continuous cycles, preserving the surface integrity of both the tool and the workpiece.
Technical Specifications
| Specification Item | Engineering Data |
| Tooling Type | Precision Forming & Piercing Die |
| Material Capability | SPHC, Q235, Stainless Steel, Alloy Steel |
| Tolerance Class | IT7 - IT8 Precision Level |
| Plate Thickness | 2.0mm - 8.0mm (Heavy Duty) |
| Hardened Inserts | SKD11 / Tungsten Carbide (Optional) |
| Cycle Speed | 25 - 45 Strokes Per Minute |
Optimized Production Performance
This bearing seat stamping die is not just a tool, but a production efficiency upgrade. Our design philosophy focuses on "Zero-Secondary Processing." By achieving precise piercing and flanging in a single stroke, we eliminate the need for post-stamping machining. We also provide customized scrap removal systems to prevent slug pulling, which is a common cause of downtime in bearing seat production lines.
