A. Zero-Thinning Deep Draw Sequence
One of the critical challenges in caster manufacturing is the "necking" of the steel. Our die architecture features a telescopic pressure pad system. This mechanism maintains a constant holding force throughout the stroke, allowing the metal to "flow" rather than stretch.
Gauge Retention: Maintains $98\%$ of nominal thickness at the highest tension points.
Geometric Tolerance: Critical hole diameters held to $\pm 0.015mm$.
B. High-Performance Surface Metallurgy
To combat the abrasive heat of high-speed stamping, we implement TD (Thermal Diffusion) Coating on all forming inserts. Unlike standard coatings, TD treatment creates a carbide layer that is metallurgically bonded to the tool steel, offering:

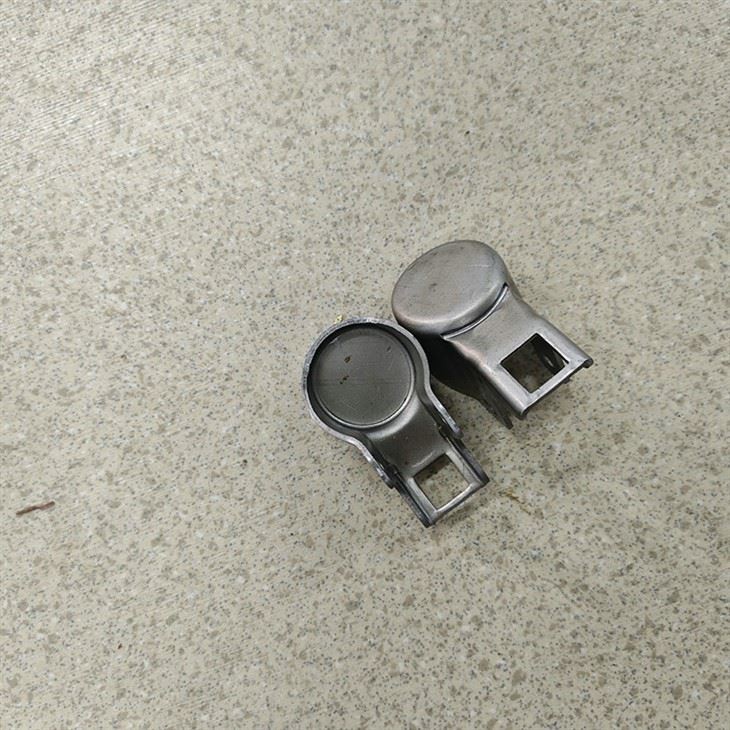

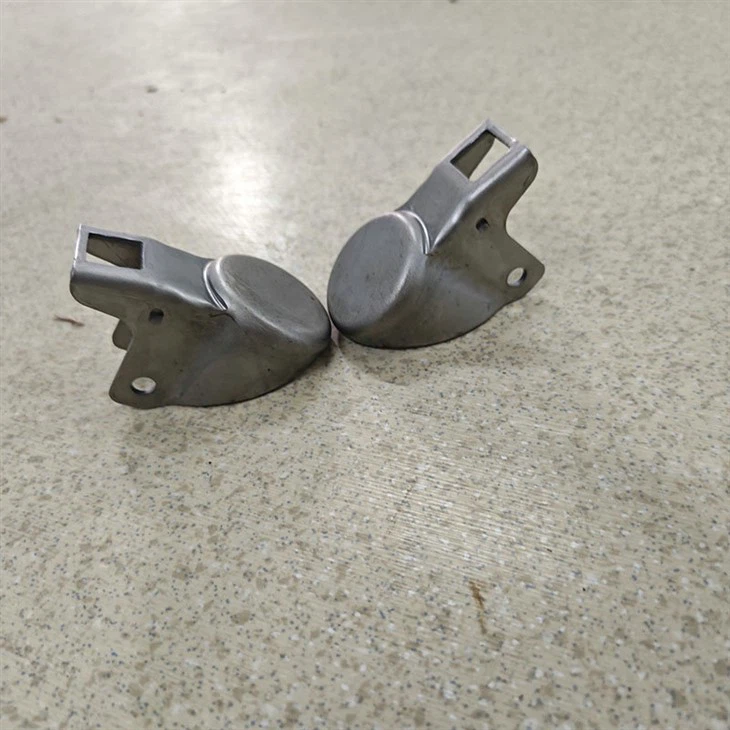

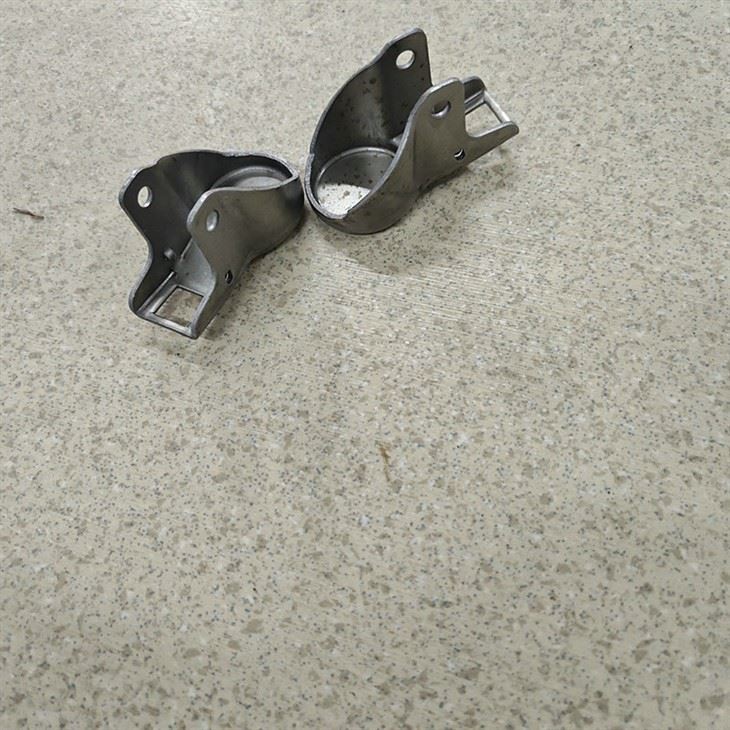

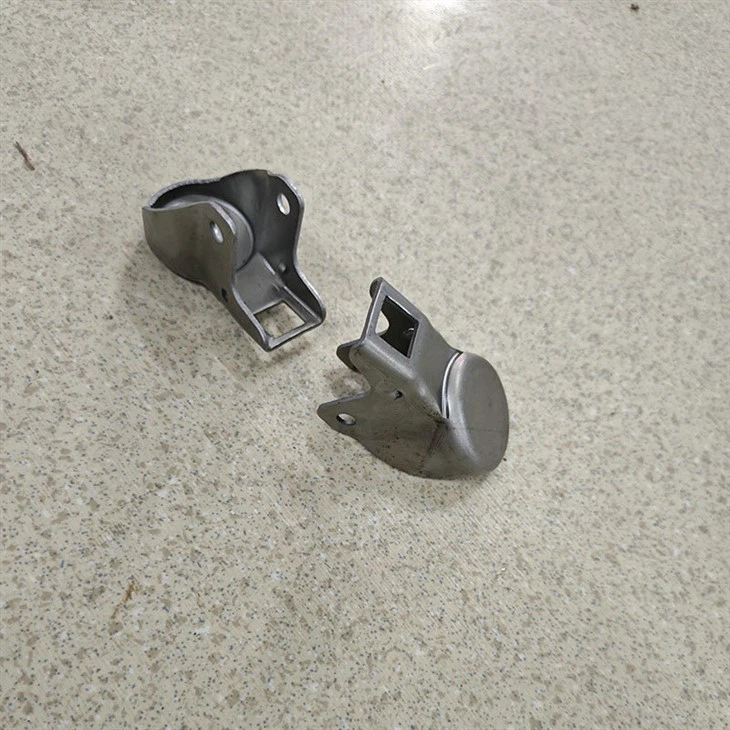

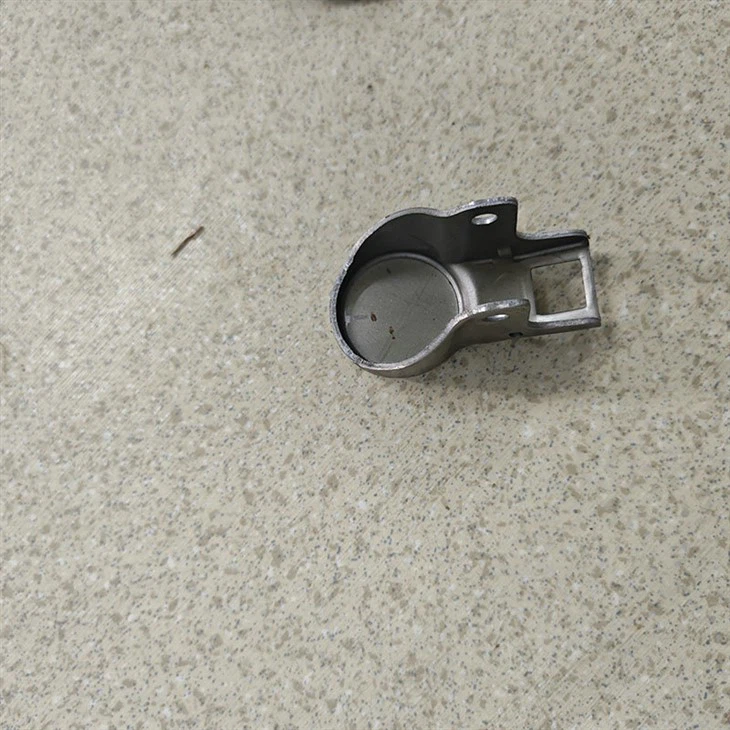

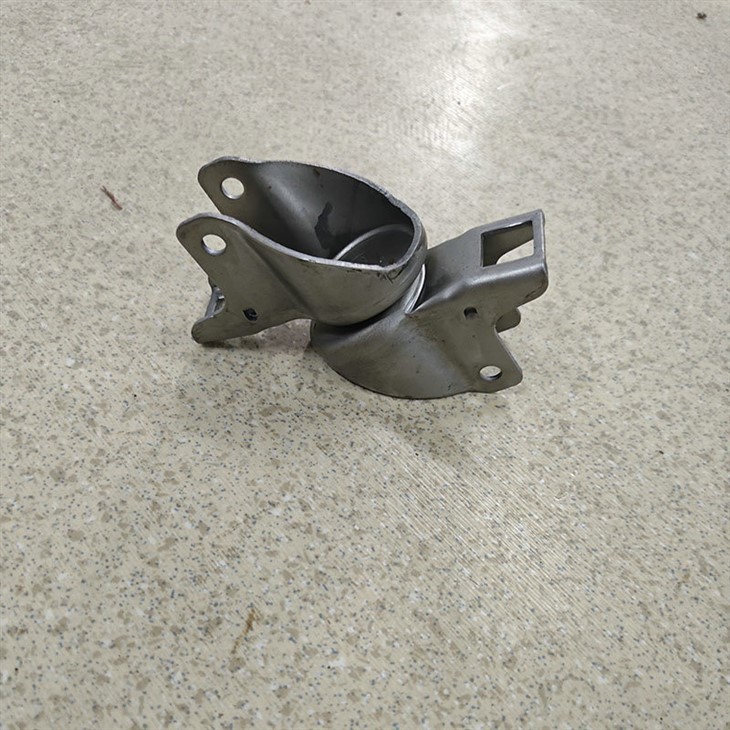

Anti-Galling Properties: Eliminates vertical scratches on stainless steel caster forks.
Service Life: Capable of exceeding 1.2 million cycles before major refurbishing.
C. Rapid-Response Modular Architecture
The die base is engineered with interchangeable piercing units. If your client requires a 4-bolt mounting pattern instead of a 3-bolt version, the conversion takes less than 20 minutes without removing the die from the bolster plate. This versatility is essential for "just-in-time" manufacturing environments.
Technical Partnership Benefits
Kinetic Simulation Reports: Every die design undergoes a virtual "Stress-Strain" test, providing you with a heatmap of potential wear zones before the steel is hardened.
Scrap-Free Blanking: Our precision nesting software reduces the bridge between parts, potentially saving up to 150kg of steel coil per 10,000 hits.
Global Standard Integration: Components like guide pillars and springs are sourced from globally available standards (MISUMI/DANLY), ensuring your maintenance team can find spares locally anywhere in the world.
