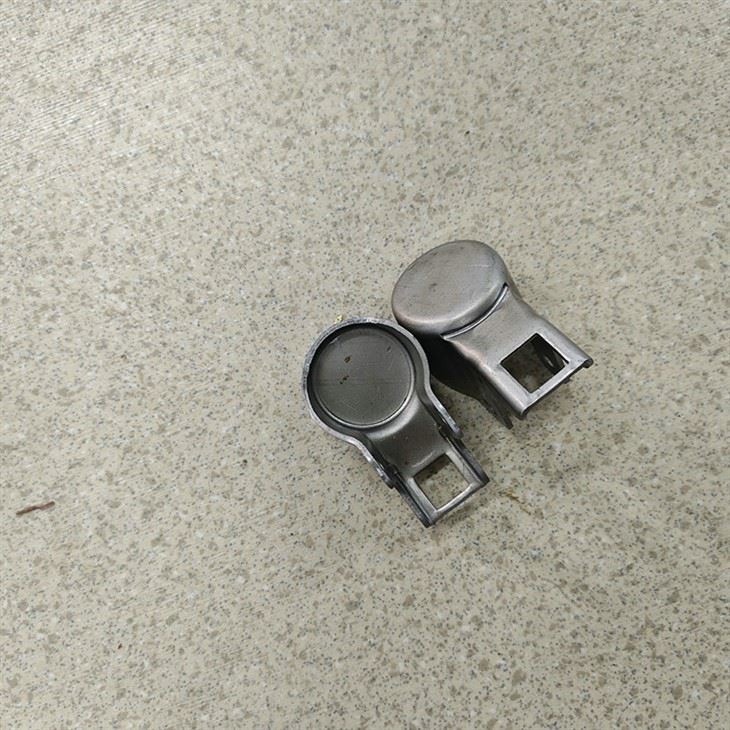

Interchangeable Module Stamping Die For Universal Caster Components

As global supply chains shift toward rapid prototyping and shorter product lifecycles, the traditional static Caster Stamping Die is evolving. We provide a dynamic tooling platform that allows manufacturers to switch between different caster plate sizes and hole patterns without investing in entirely new die sets. This modular approach reduces capital expenditure (CAPEX) while drastically shortening the "Time-to-Market" for new caster designs.

I. The Architecture of Multi-Spec Tooling

The core of our innovation lies in the Master Die Base system. By using a standardized outer frame, we implement high-precision inserts that can be swapped within minutes. This design is particularly effective for caster manufacturers who produce a variety of load ratings (Medium to Heavy Duty) using the same basic geometry but different material thicknesses.

II. Kinetic Energy Absorption & Vibration Damping

In high-speed stamping environments, vibration is the enemy of precision. Our caster dies feature:

Composite Stripper Plates: Utilizing specialized damping alloys to absorb the shock of impact, protecting the delicate piercing punches.

Balanced Guidance: We employ a diagonal four-post guiding system that counteracts the eccentric loads common when stamping asymmetrical caster forks.

III. Intelligent Material Utilization (Nest Optimization)

Material costs account for over 60% of caster production expenses. Our Caster Stamping Die designs incorporate advanced strip nesting logic. By optimizing the pitch and bridge width in the progressive layout, we achieve up to a 12% reduction in scrap metal, directly padding your bottom line.

IV. Quality Assurance: Beyond the Visual

Shear Edge Metallurgy: We utilize Vanadis 8 (Powder Metallurgy Steel) for high-stress zones, offering a unique combination of wear resistance and toughness that prevents micro-chipping under high-tonnage loads.

Automated Clearance Adjustment: Each die set is designed with shim-free adjustment ports, allowing operators to maintain the optimal die clearance as the tool ages, ensuring consistent burr heights throughout the product life.
