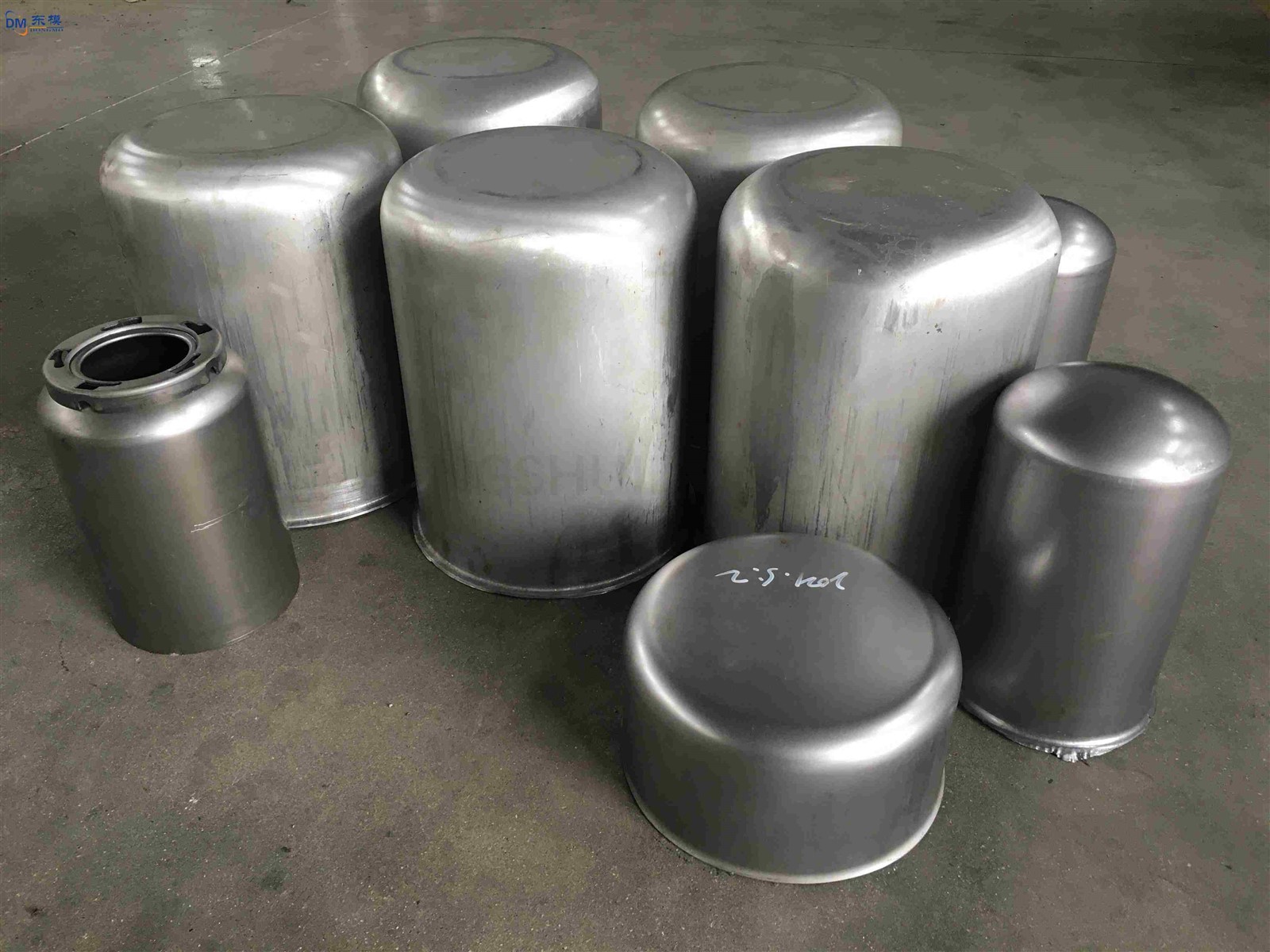

Custom Deep Drawing Stamping Dies

The quality of the finished product depends on the quality of the die used to manufacture it. Progressive dies are among the most complex and expensive dies in manufacturing. Their design and manufacture require extremely high skill and precision. It is a capital investment that can cost tens or even hundreds of thousands of dollars.

What makes progressive dies so complex?

Die Assembly: The foundation of this tool is the die assembly. It consists of two heavy plates, called die bases, made of high-quality steel. These die bases are precisely positioned by large guide pins and bushings. This robust structure ensures that the upper and lower parts of the tool are perfectly aligned with each stamp, which is crucial for maintaining tight tolerances.

Each Station Installed Within the Die Assembly: These are independent machining stations. Each station is a custom sub-assembly consisting of punches, dies, formed parts, and other components. These components are typically made of extremely hard and wear-resistant tool steel. Each station must be precisely positioned with other stations to ensure that the feature machined at one station is perfectly aligned with the feature machined at the next station.

Carrier Belt Design: The design of the carrier belt itself is a crucial part of the engineering process. Engineers must meticulously plan the sequence of operations to ensure the feed strip is strong enough to transport parts from one station to another without stretching or deformation. They also strive to optimize the arrangement of parts on the feed strip to minimize material waste. This is known as "nesting."

Sensors and Automation: Modern progressive dies are typically equipped with sophisticated networks of electronic sensors. These sensors can detect whether the feed strip is being fed correctly, whether a punch has broken, or whether a finished part has failed to eject. Once any error is detected, the sensors immediately stop the press. This prevents catastrophic and extremely costly damage to the die.
