Overcoming Tooling Wear: Engineering Long-Lifespan Metal Stamping Molds for High-Volume Production
For global procurement managers in the automotive, appliance, and hardware sectors, the true cost of a sheet metal stamping mold isn't the price on the initial invoice. It is measured in maintenance frequency, press downtime, and scrap rates.
When running high-speed production lines, premature die failure can paralyze your entire supply chain. To achieve a high return on investment (ROI), understanding the mechanics of die wear and selecting a manufacturer capable of preventing it is critical.
The Root Causes of Die Failure and How to Prevent Them
During continuous high-tonnage pressing, stamping components face extreme friction, thermal shock, and mechanical stress. Industry data shows that over 70% of unexpected production halts stem from three primary tooling vulnerabilities:
1. Galling and Adhesive Wear
When stamping stainless steel or high-strength low-alloy (HSLA) steel, metal particles tend to fuse to the die surface, causing scratches on the stamped parts.
The Solution: Utilizing advanced surface coatings like PVD (Physical Vapor Deposition) or TD (Thermal Diffusion) creates an ultra-hard barrier, drastically reducing friction and eliminating surface scoring.
2. Chipping and Structural Cracking
Heavy-duty blanking and piercing operations put immense shock on cutting edges, leading to micro-chipping.
The Solution: Shifting from standard tool steels to high-toughness alloys like DC53, Caldie, or PM (Powder Metallurgy) steels, coupled with precise cryogenic treatment, balances hardness with high impact resistance.
3. Misalignment in High-Speed Progressive Runs
Even a microscopic shift in a multi-station tool can smash expensive punches instantly.

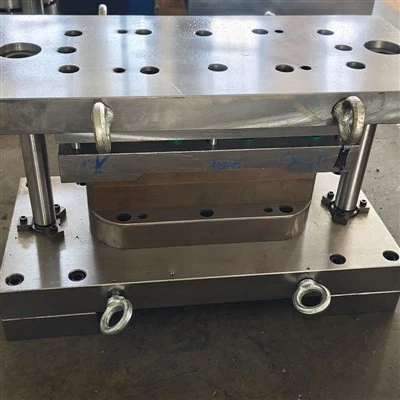

The Solution: Incorporating high-precision ball bearing guide posts and implementing electronic die-protection sensors within the tooling architecture to auto-stop the press if a strip misfeeds.
Technical Benchmarks of a World-Class Die Shop
A cheap mold often leads to expensive repairs. When auditing an overseas manufacturing partner, look for these specific capabilities to ensure your tool survives millions of strokes:

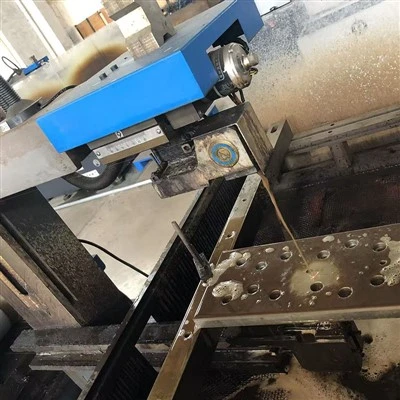

In-House Wire EDM and CNC Grinding: Can the factory achieve Machining tolerances of $\pm0.005\text{ mm}$ for critical inserts? This degree of accuracy ensures seamless components replacement without modifying the original die shoe.
Advanced Formability Simulation: Do they use digital stress-analysis to detect thinning, wrinkling, or springback before cutting steel?
Optimized Scrap Clearance: Are the slug drop holes engineered with proper taper and vacuum assistance to prevent slug pulling-the number one cause of dented parts?
Engineered for Durability: Hengshui Dongmo Precision Metal Products Co., Ltd.

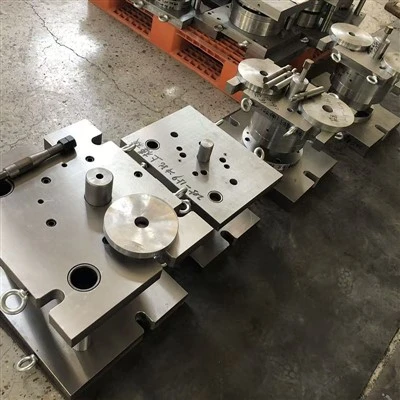

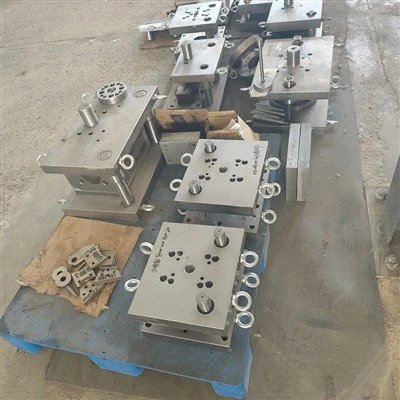

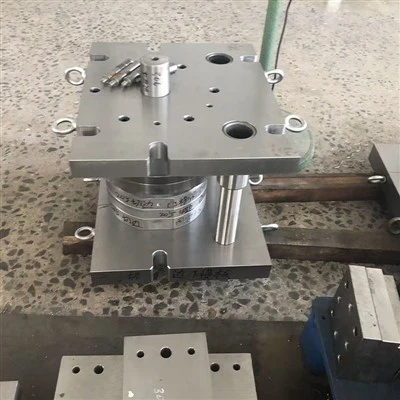

At Hengshui Dongmo Precision Metal Products Co., Ltd., we don't just build molds; we engineer high-uptime manufacturing assets. Operating from our advanced facility in Hebei, China, we specialize in heavy-duty stamping dies, intricate progressive tooling, and specialized drawing molds built to international standards.

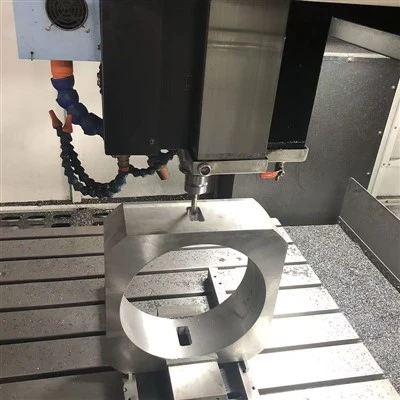

By utilizing premium certified materials, rigorous heat treatment protocols, and precise 5-axis machining, our engineering team ensures your tooling delivers flawless repeatability from the first stroke to the five-millionth.
Optimize Your Production Line Today
Send us your 3D part drawings (STEP/IGES/DXF), and our engineering department will provide a comprehensive DFM (Design for Manufacturability) analysis and a transparent quote.
