Engineering for Global Safety Compliance

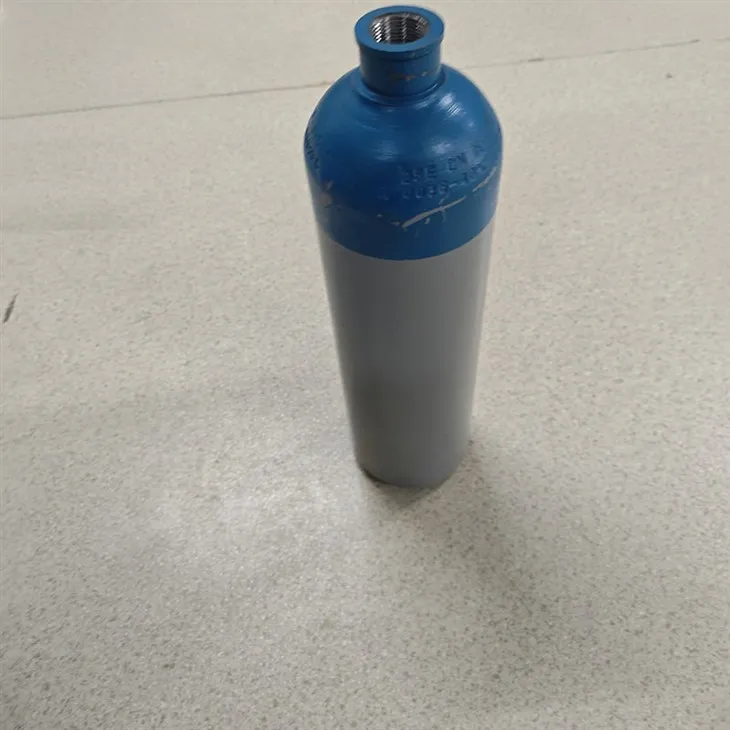

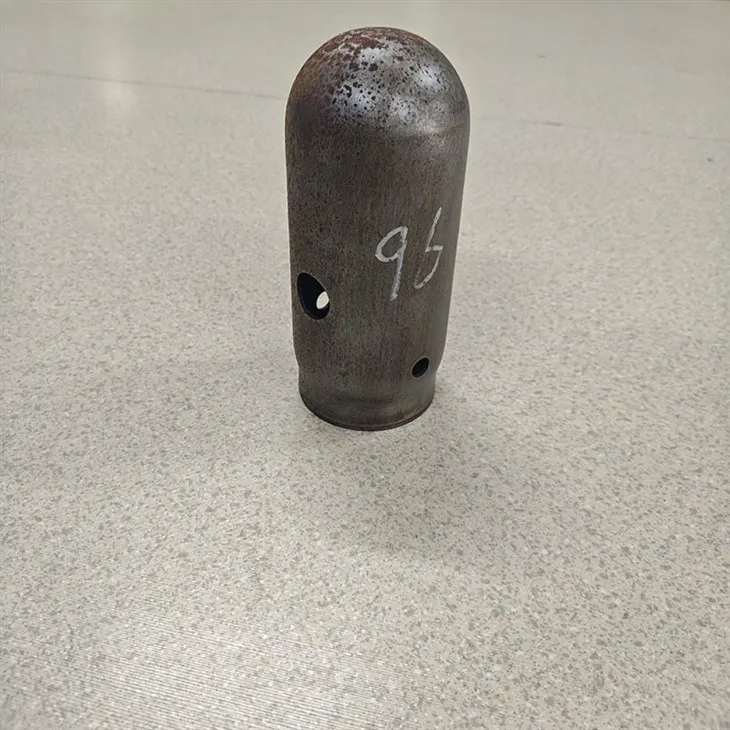

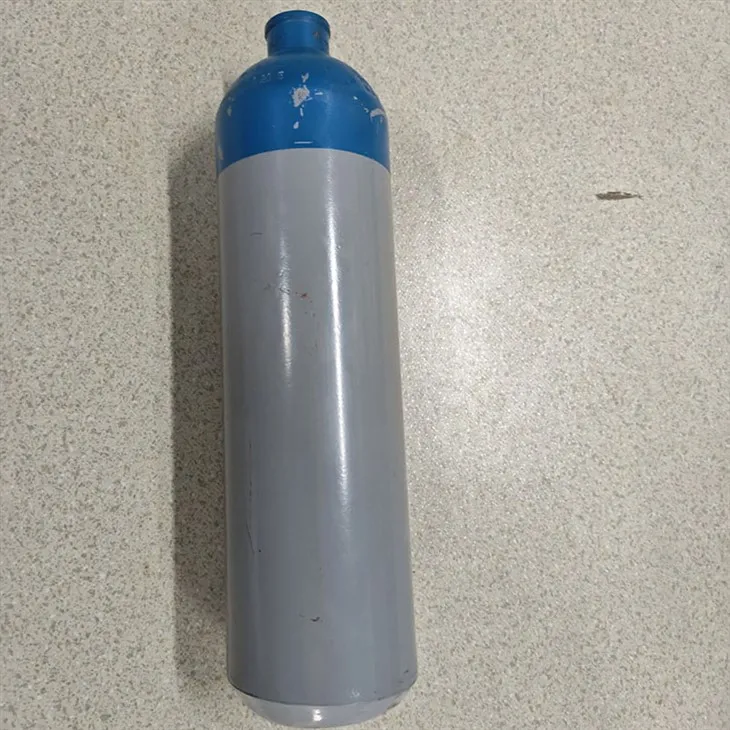

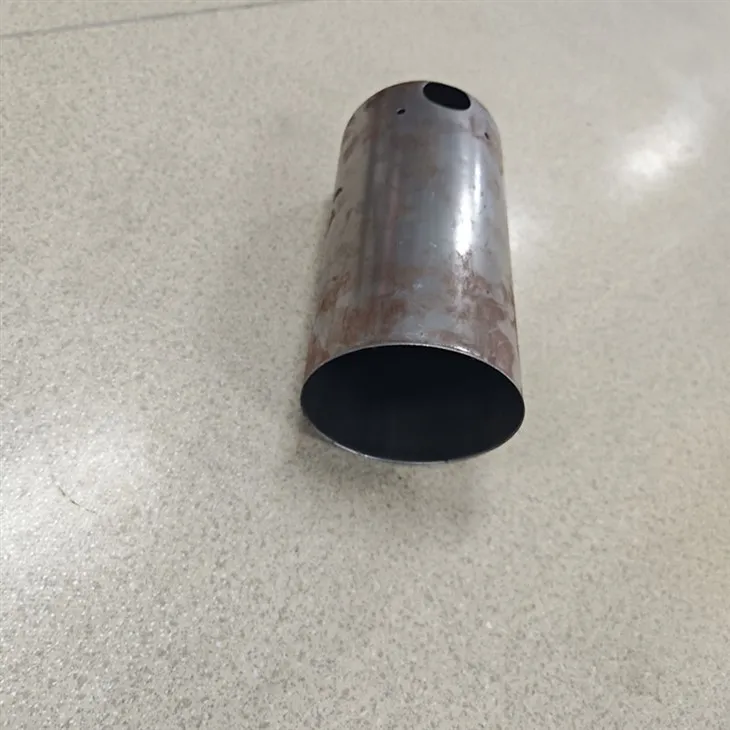

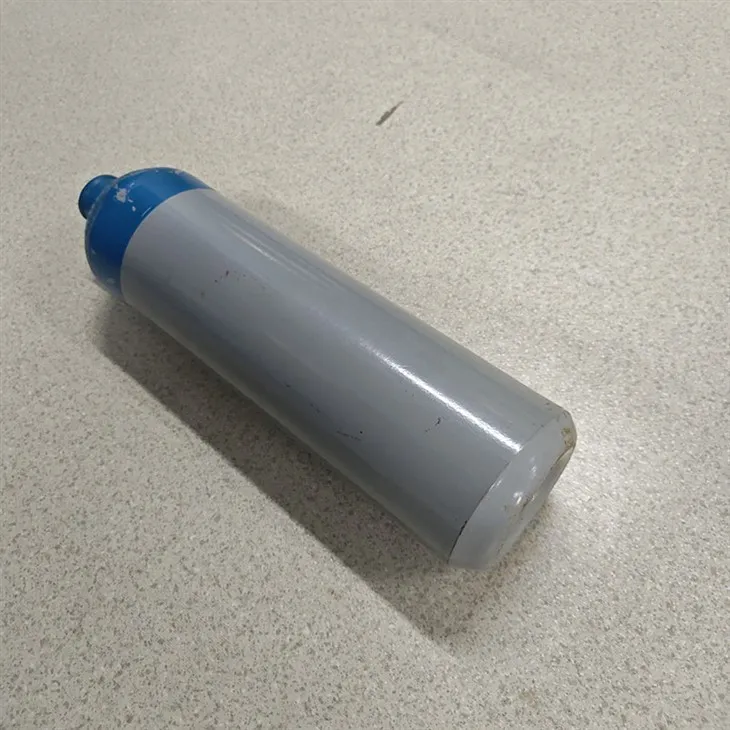

The manufacturing of an LPG cylinder is governed by rigorous safety standards where any wall thinning or micro-fracture is unacceptable. Our moulding technology utilizes a specialized pressure-pad system that controls material flow during the deep drawing phase. This meticulous control prevents the formation of wrinkles and maintains a uniform thickness across the dome and skirt, ensuring the final cylinder can easily pass high-pressure burst tests.
Precision Guiding: Built with ball-bearing guide bushes for frictionless, high-accuracy alignment.
Stress Distribution: Optimized die radii to minimize localized thinning during deep draws.
Interchangeable Inserts: High-wear areas feature modular inserts for rapid on-site replacement.
Enhancing Factory Throughput and ROI
In a high-volume production environment, every second saved translates to increased profitability. This LPG Cylinder Mould is compatible with multi-stage transfer presses, allowing for a continuous production flow from blanking to necking. By reducing the scrap rate through precision blank-holder force adjustment, our clients achieve a significant reduction in material costs while maintaining the high aesthetic and structural quality required for domestic and industrial gas markets.
| Feature | Engineering Detail |
| Mould Construction | Modular Die Set with Hardened Surfaces |
| Compatible Tonnage | Optimized for 400T to 1200T Presses |
| Standard Sizes | 6kg, 12.5kg, 15kg, 50kg (Standard/Custom) |
| Steel Grade | SKD11 / D2 with Vacuum Heat Treatment |
| Cycle Life | 1,200,000+ Strokes with Proper Maintenance |
