Industrial Hydrostatic-Grade LPG Tank Mould For High-Pressure Gas Containment Shells

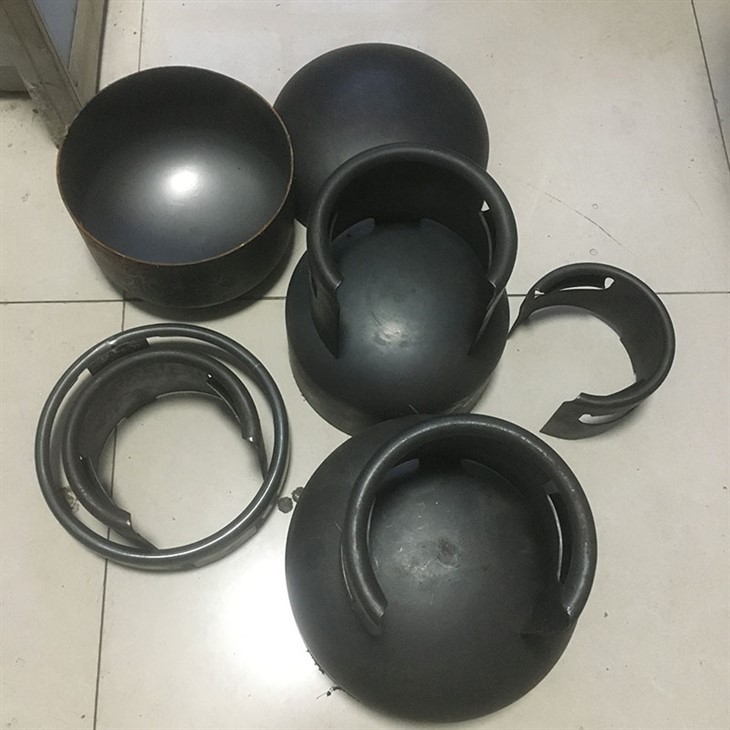

This advanced LPG cylinder mould system is designed to facilitate the complex plastic deformation required for two-piece and three-piece pressure vessels. Our engineering philosophy centers on the "Material Memory" of the steel, ensuring that the dome and body sections maintain perfect volumetric symmetry. By controlling the grain-flow orientation during the forming process, we produce gas cylinder halves that exhibit superior resistance to internal circumferential stress, meeting the rigorous safety mandates of global energy distributors.

Send Inquiry

Volumetric & Structural Engineering

The safety of an LPG vessel is dictated by its weakest point. Our mould design eliminates localized structural thinning through:

Symmetric Flow Dynamics: We utilize high-coefficient friction management on the blank holder to ensure that the steel sheet draws evenly into the cavity, preventing off-center mass distribution.

Knuckle Radius Reinforcement: The tooling geometry is optimized to create a gradual transition at the knuckle, which redistributes pressure loads more effectively than standard parabolic designs.

Elastic-Modulus Compensation: The mold surface incorporates micro-adjustments to account for the specific springback characteristics of high-strength vessel steels (e.g., HP295 or SG295).

Technical Specifications

Containment Engineering	Performance Values
Material Grade Compatibility	HP295, HP345, SG295 Vessel Steel
Forming Method	Single-Action / Double-Action Drawing
Concentricity Tolerance	< 0.08mm for Valve Alignment
Lubrication System	Integrated Micro-Mist Channels
Die Insert Hardness	HRC 62-64 (Sub-Zero Treated)
Standard Compliance	ISO 4706 / DOT-4BA / EN 1442

Sustainability & Production Yield

Our LPG cylinder mould technology is built for the "Green Manufacturing" era. By achieving an ultra-smooth internal finish, we reduce the surface tension of the metal, which minimizes the need for aggressive post-draw chemical cleaning. Furthermore, our "Quick-Bleed" air venting system prevents trapped pockets from creating surface micro-voids, ensuring a 99.8% first-pass yield. This focus on process efficiency directly translates to lower energy consumption and reduced carbon footprints for large-scale gas tank production facilities.
