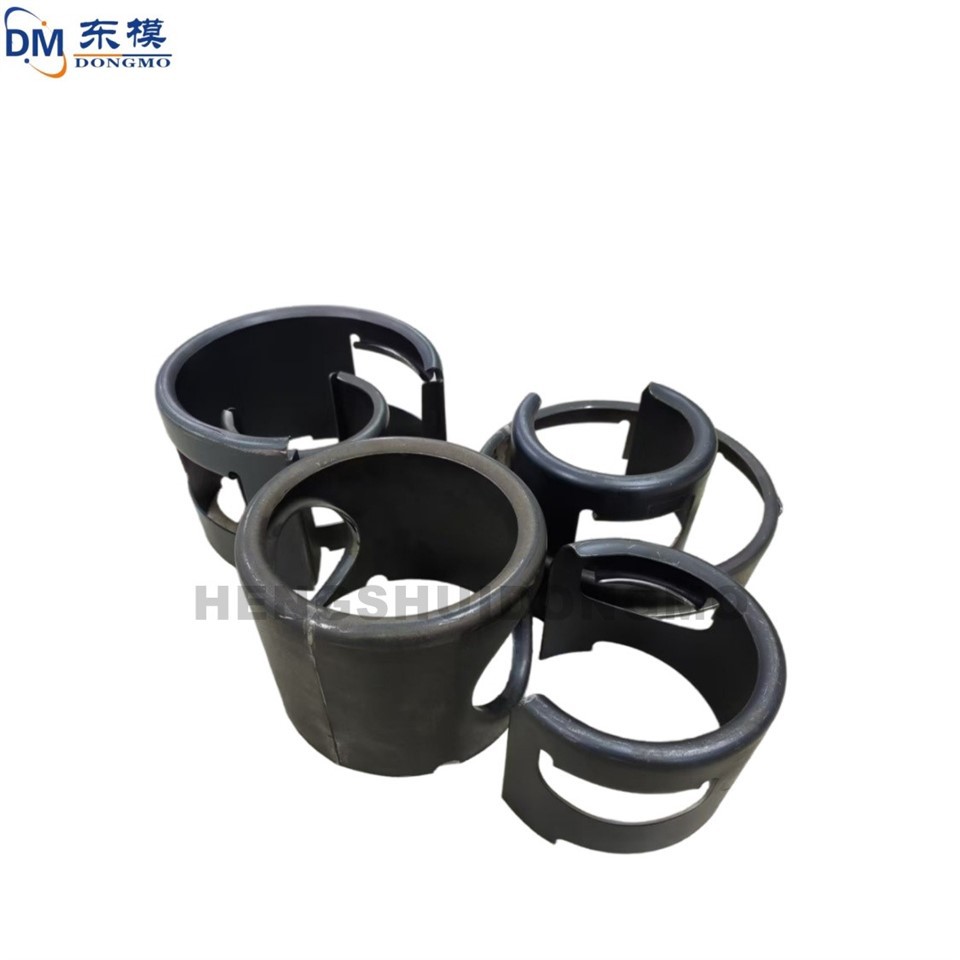

LPGcylinder Base, Handle, Hand Guard, Metal Stamping Parts

I. Importance of Stamping Die Precision

The precision of stamping dies is fundamental to ensuring the quality of stamped parts. During the stamping process, the precision of the die determines the dimensional accuracy, shape accuracy, and surface quality of the stamped parts. For example, in the automotive manufacturing industry, the precision of the stamping dies for body panels directly affects the assembly accuracy and appearance quality of the body. If the die precision is insufficient, the stamped parts may exhibit dimensional deviations, shape distortions, or surface roughness, which not only affects the assembly and performance of the product but may also lead to a large number of scraps, increasing production costs.

Furthermore, the precision of stamping dies also has a significant impact on production efficiency. High-precision dies ensure the stability and reliability of the stamping process, reducing die debugging time and maintenance frequency, thereby improving production efficiency. Conversely, lower-precision dies are prone to malfunctions during the stamping process, such as die jamming and chipping, which not only delays production but also increases the risk of equipment damage.

II. Factors Affecting Stamping Die Precision

1. Die Design
A reasonable die design is a prerequisite for ensuring the precision of stamping dies. Designers need to accurately calculate various parameters of the mold based on the product's shape, size, and process requirements, such as the clearance between the punch and die, and the cutting edge dimensions. Simultaneously, the structural strength and rigidity of the mold must be considered to ensure it does not deform during stamping.

During the design process, the mold's manufacturability must also be fully considered. For example, overly complex shapes and structures should be avoided to facilitate mold manufacturing and processing. Furthermore, advanced design concepts and technologies, such as digital design and simulation analysis, can be employed to improve the accuracy and reliability of mold design.

2. Mold Manufacturing
Mold manufacturing is a crucial step in achieving the precision of stamping dies. The manufacturing process requires advanced processing equipment and processes, such as CNC machining, EDM, and wire cutting, to ensure the mold's machining accuracy. At the same time, errors during processing must be strictly controlled, such as machine tool accuracy, tool wear, and the influence of cutting forces.

The selection of mold materials also significantly impacts precision. High-quality mold materials possess good hardness, strength, and wear resistance, ensuring stable precision during long-term use. In addition, appropriate heat treatment of the mold material is necessary to improve its performance.

3. Die Assembly
Die assembly is the process of assembling various components into a complete die. During assembly, it is crucial to ensure the precision of the fit between each component, such as the fit between the punch and die, and the fit between the guide pillars and guide bushings. Simultaneously, attention must be paid to the assembly sequence and method to avoid decreased die precision due to improper assembly.

After assembly, the die needs to be debugged and inspected. Through trial molding and testing, any problems with the die can be identified and adjusted promptly to ensure that the die precision meets requirements.

4. Use and Maintenance
Stamping dies are affected by various factors during use, such as stamping pressure, temperature, and lubrication. Therefore, it is necessary to reasonably control the stamping process parameters to avoid decreased die precision due to improper process parameters. Regular maintenance and upkeep of the die are also required, including cleaning, lubrication, and replacement of wearing parts, to extend the die's service life and maintain its precision.
