Digital Precision in Custom Stamping Tool Engineering
In the era of advanced industrial design, a high-performance stamping tool is the bridge between a complex 3D CAD model and a flawless physical product. As component geometries become more intricate and materials shift toward high-strength, lightweight properties, traditional trial-and-error tooling methods are no longer viable.

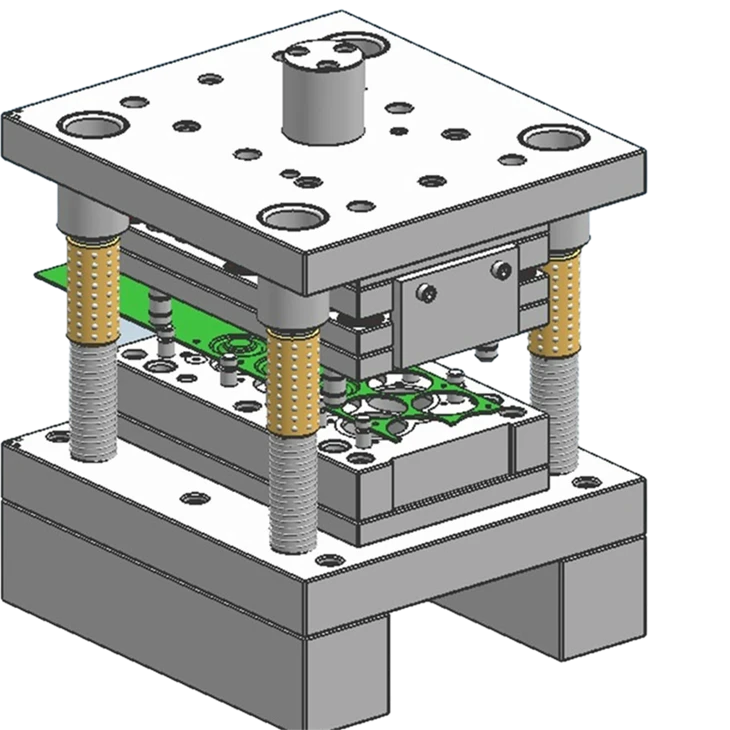

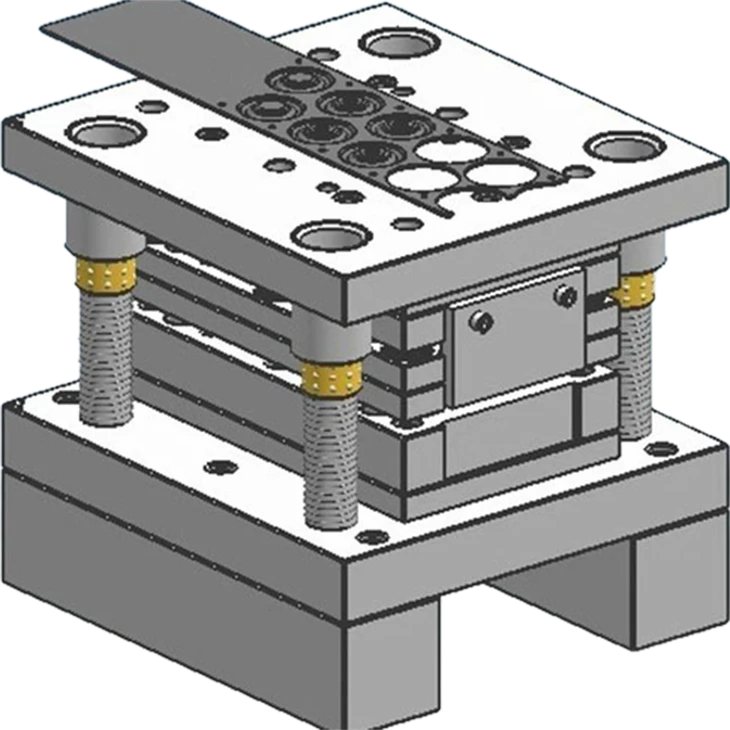

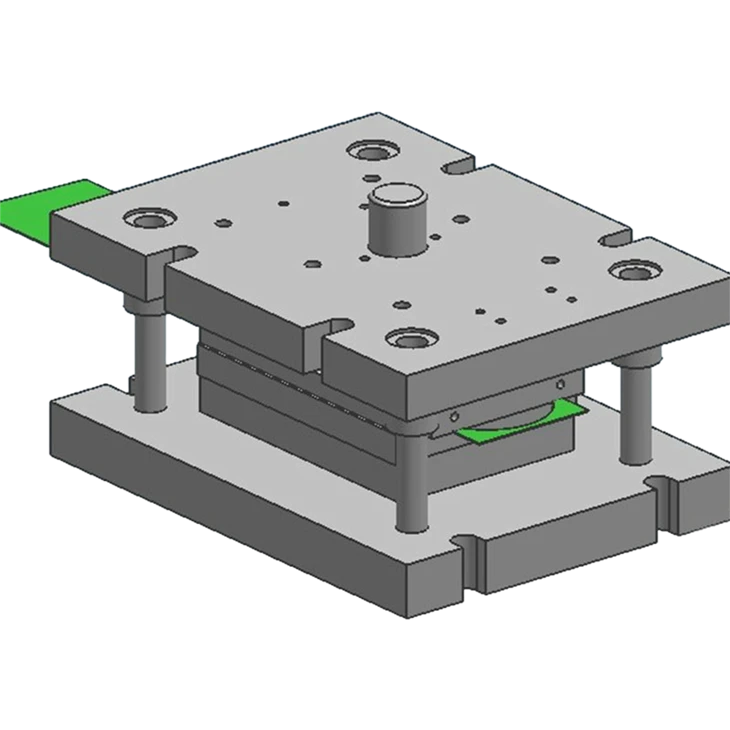

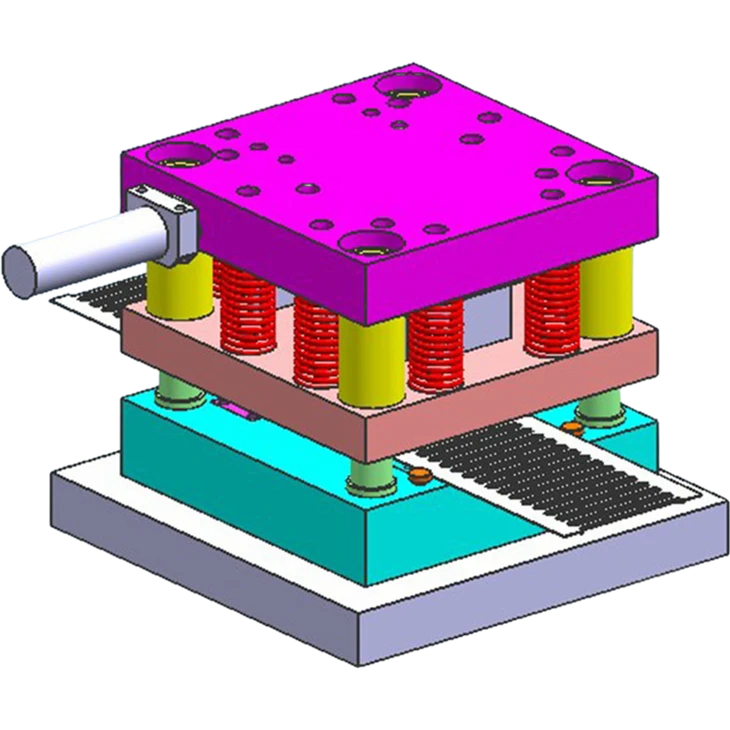

Our engineering laboratory redefines custom stamping tool fabrication by injecting cutting-edge predictive software and advanced material science into the very beginning of the tool design phase. We engineer highly sophisticated metal forming tools that achieve first-time-right geometry, eliminating the costly re-cutting loops that typically delay major industrial program launches.
The Predictive Engineering Workflow: From Virtual Simulation to Steel
We de-risk the entire manufacturing lifecycle by running comprehensive finite element analysis (FEA) models before a single block of tool steel is machined:
[3D Component Data] ➔ [CAE Formability & Thinning Simulation] ➔ [Digital Springback Compensation] ➔ [5-Axis High-Speed CNC Milling]
Formability Matrix Analysis: Using advanced simulation tools like AutoForm or PAM-STAMP, we map out stress distribution, predicting potential localized thinning, wrinkling, or tearing on the sheet metal blank.
Geometrical Springback Over-Compensation: Advanced high-strength steels (AHSS) exhibit severe elastic recovery. Our design matrix calculates this deflection digitally, altering the stamping tool surface geometry in reverse to ensure the final relaxed part matches the master CAD file perfectly.
Virtual Press Line Matching: We simulate the entire press stroke velocity and binder pressure curve, tailoring the tool kinetics to mirror the exact hydraulic or mechanical press parameters of your factory floor.
Material Physics & Surface Hardening Integration
To survive the extreme friction of modern industrial stamping, the contact surfaces of our precision stamping tool components are treated based on severe wear-resistance metrics:
| Tooling Zone | Base Metal Selected | Surface Engineering Applied | Surface Hardness achieved |
|---|---|---|---|
| High-Stress Drawing Die Cores | DC53 / Caldie | Thermal Diffusion (TD) Treatment | Up to 85–90 HRC |
| Intricate Piercing Punches | Vanadis 4 Extra / ASP-23 | Physical Vapor Deposition (PVD) TiCN | Up to 3000 HV |
| Heavy-Duty Stripper Plates | Cr12MoV / SKD11 | Vacuum Gas Nitriding | 65–68 HRC (Surface) |
| Robust Structural Die Shoes | SS400 Forged / Cast Steel | Stress-Relieving Annealing | Normalized structural stability |
Overcoming the Challenges of Next-Generation Alloys
Modern manufacturing demands lighter yet stronger products. Our industrial stamping tools are specifically tailored to process the most difficult materials in the global supply network:
Aluminum 6000-Series Automotive Panels: Engineered with specialized draw bead profiles and ultra-smooth radii to prevent surface galling and micro-tearing on visible exterior skin parts.
Ultra-High-Strength Steel (UHSS/Boron Steel): Constructed with heavy-duty matrix blocks and high-impact-resistant tool steels capable of piercing through tensile strengths exceeding 1200 MPa without premature edge chipping.
Pre-Painted & Coated Electronics Hardware: Utilizing mirror-polished solid carbide inserts that bend and form pre-treated surfaces without scratching or disrupting the thin protective zinc or paint layer.
Upgrade Your Prototyping and Production Assets
Are developmental tooling delays and unpredicted material wrinkles stalling your production timelines? Partner with a digitally driven stamping tool manufacturer that designs for absolute physics-based predictability. Upload your native 3D CAD data, material certification sheets, and production volume targets to our advanced engineering portal today. Our R&D team will generate a complete formability report and commercial technical quotation within 24 hours.
