1. Product Overview

Engineered for long-run efficiency and seamless high-volume output, our progressive stamping die systems integrate punching, blanking, bending, and deep embossing into a single automated operational pass. Optimized for complex structural hardware and heavy-gauge appliance panels, each tooling assembly minimizes manual intervention while drastically boosting strokes-per-minute (SPM) capacity.

2. Technical Performance Matrix

Engineering Capability Field	Standard Industrial Grade	High-Durability Custom Grade
Target Application Domain	Brackets, Hinges, Mounting Plates	Deep Drawn Cased Frames, Heavy Structural Clips
Workpiece Thickness Range	0.5 mm to 3.5 mm	3.5 mm to 6.5 mm (High Tensile Alloy Steel)
Die Block & Insert Material	Cr12MoV, SKD11 Steel	DC53, Alloyed Carbide Inserts
Feeding Stroke Precision	±0.015 mm	±0.005 mm (With Automated Servo Feeder Pilot)
Expected Tooling Service Life	800,000 Strokes	Exceeding 3,000,000 Strokes (Regrindable)
Press Machine Tonnage Match	80 Ton – 400 Ton Presses	500 Ton – 1000 Ton Mechanical Presses

3. Key Structural Advantages

Heavy-Duty Structural Die Base Design: Constructed using premium cast iron or thick forge-milled S45C steel plates, preventing frame flex under extreme tonnage load during continuous blanking and piercing cycles.

Optimized Strip Layout & Material Savings: Our engineering team performs advance finite element method (FEM) layout analysis to maximize raw material yield per coil, reducing scrap generation by up to 18% over conventional single-stage tooling setups.

Standardized Component Interchangeability: All guide pins, bushings, nitrogen gas springs, and cutting inserts strictly conform to MISUMI or FIBRO international standards, allowing easy sourcing of replacement parts worldwide.

4. Operational Workflow & Quality Gate

Every project follows a transparent 5-tier verification gate:

$$\text{Material Testing} \longrightarrow \text{DFM Simulation} \longrightarrow \text{Wire-Cut Machining} \longrightarrow \text{Trial Run Sample Stamping} \longrightarrow \text{Full CMM Dimension Certification}$$

Physical sample parts accompanied by full inspection metrics are dispatched prior to final shipment.

5. Frequently Asked Questions (FAQ)

Q1: How do you handle design changes during the progressive die development process?

A: We incorporate modular insert plates into the preliminary die design. If minor dimensional modifications are needed after sample testing, we simply re-machined or replace the specific station insert without discarding the entire die set.

Q2: Can your progressive stamping dies be adapted to our existing press machine specs?

A: Yes. Before finalizing 3D tool modeling, we collect your press machine technical parameters (including bolster bed dimensions, shut height, stroke length, and feed direction) to ensure 100% mounting compatibility.

Q3: What guarantees are provided for tool steel hardness and heat treatment quality?

A: All tool steel materials are supplied with origin material certs. Inserts undergo vacuum heat treatment and stress-relieving cycles. Complete Rockwell hardness (HRC) test logs are provided with the die documentation package.

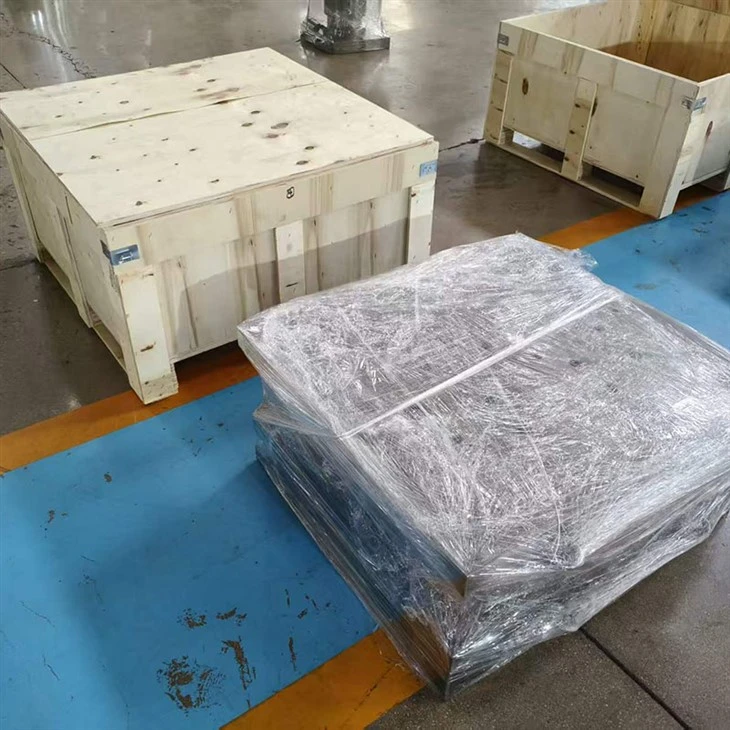

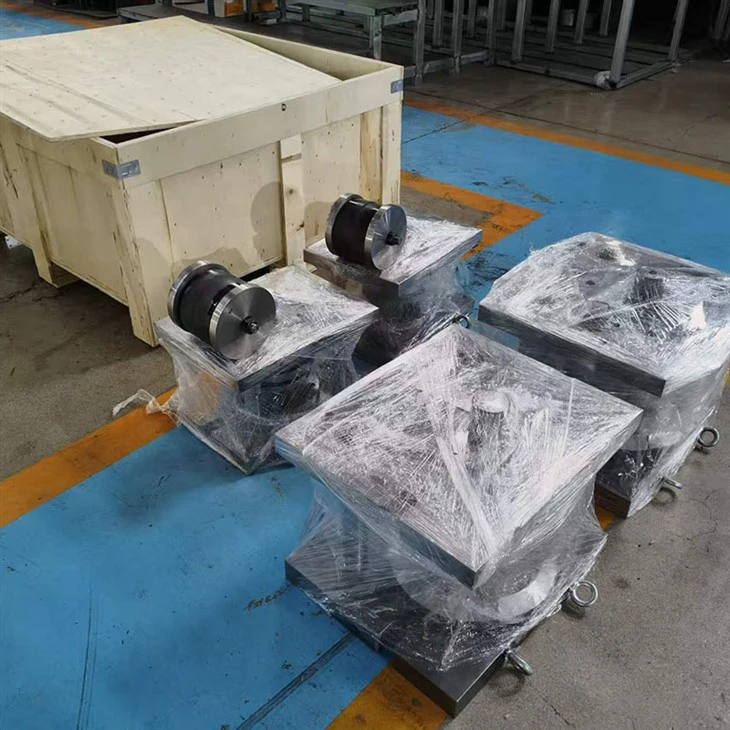

Q4: How are dies packaged to prevent moisture and rust during long sea transit?

A: Tools are fully cleaned, sprayed with heavy-duty anti-rust oil, wrapped in vacuum sealed VCI anti-corrosion barrier film, and secured inside reinforced IPPC-certified fumigation-free wooden crates.
