Phase 1: Advanced Forming Simulation & DFM
Before a single piece of steel is cut, our engineering team conducts a comprehensive stamping mold feasibility study.
CAE Simulation: Utilizing specialized software to predict material behavior, ensuring that complex geometries are achievable without compromising structural thickness.
Cost Optimization: We analyze part orientation and strip layouts to ensure the highest possible material utilization rate, directly impacting your bottom line.
Phase 2: High-Spec Fabrication & Component Synergy

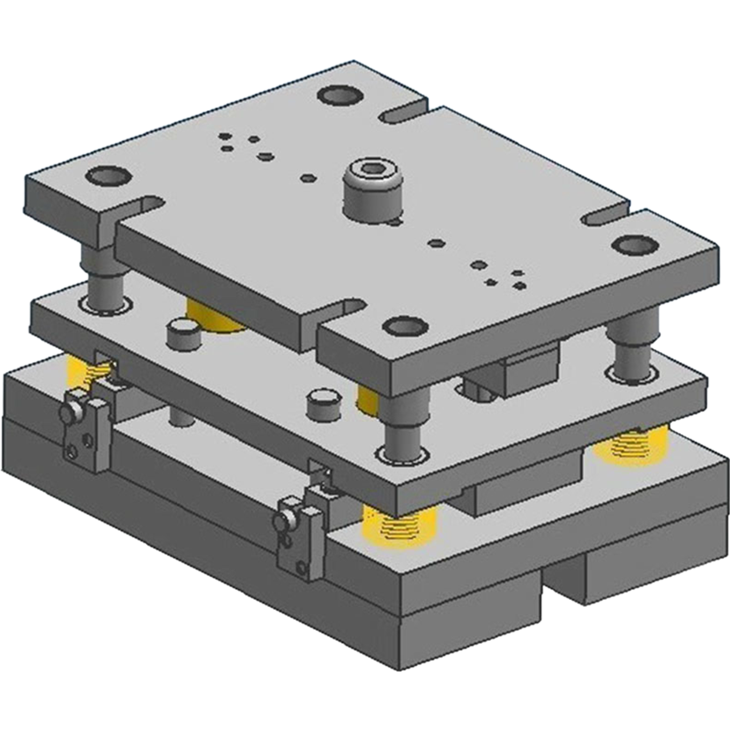

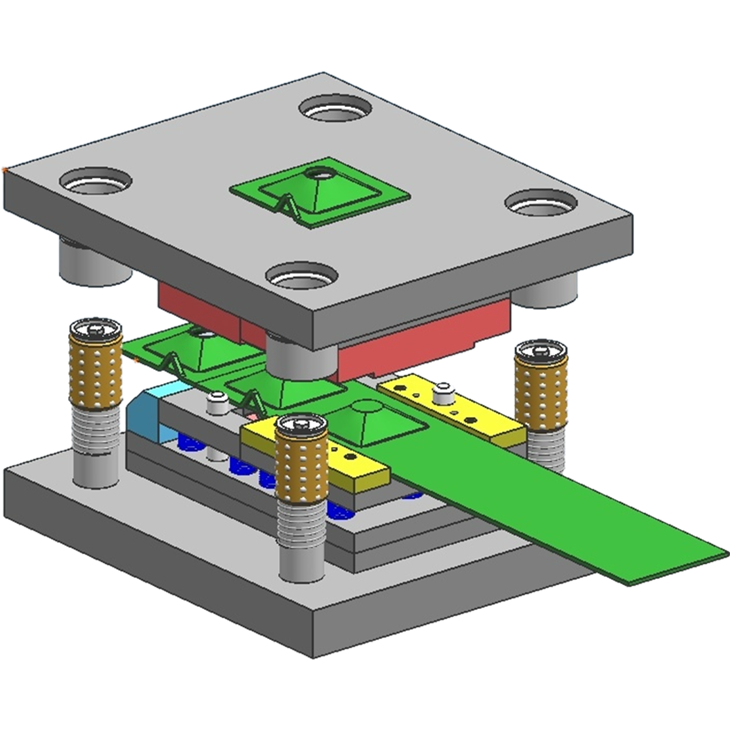

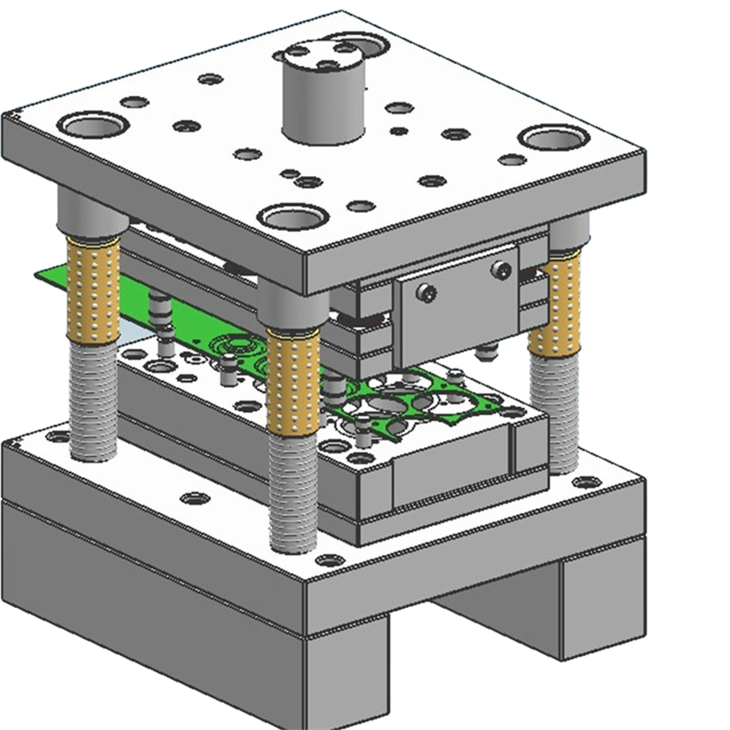

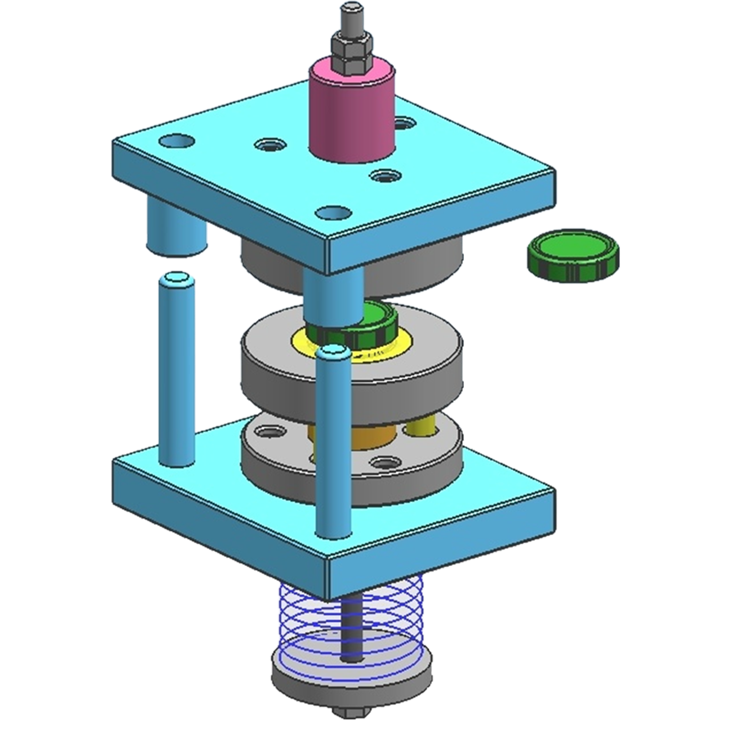

A high-performance mold is an assembly of perfectly synchronized components. Our fabrication process focuses on the synergy between the punch, die, and stripper plates.
Material Selection: We source certified tool steels with specific grain structures to handle the thermal and mechanical stresses of continuous operation.
Micro-Tolerance Machining: Our facility utilizes high-precision grinding and wire-cutting to maintain clearances that are optimized for the specific gauge and tensile strength of your raw material.
Phase 3: Rigorous Validation & Metrology
Every stamping mold we produce must pass a "Quality Gate" before it reaches your facility.
CMM Inspection: We use Coordinate Measuring Machines to verify that every critical dimension of the tool-and the parts it produces-aligns perfectly with your 3D CAD models.
Stress Testing: We perform extended trial runs to ensure that ejection systems and gas springs operate reliably under simulated production speeds.
