Industrial Synchronization: Enterprise Solutions from a Direct Metal Stamping Die Manufacturer
Sustaining profitability in high-tonnage hardware fabrication requires an operational shift from transactional vendors to a fully integrated metal stamping die manufacturer. Minor structural miscalculations in die shoe deflection or inappropriate tool steel selection can result in localized stress cracks, halting high-speed automated press lines and disrupting international logistics. Our manufacturing organization operates a vertically integrated production ecosystem, blending upfront advanced material simulation, precision multi-axis CNC erosion, and real-world press tryouts to ensure your custom tool sets deliver uncompromised part consistency.
System Infrastructure & Machine-Material Adaptation
Our engineering floor constructs durable industrial frameworks built to integrate seamlessly with your plant's automated quick-die-change (QDC) setups and press kinetics:
[Raw Coil Unwinding] │ ▼ [Pneumatic Feed Leveling] ───► Micro-metric stock alignment tracking │ ▼ [High-Tonnage Die Impact] ───► Stress-distributed punch-to-cavity engagement │ ▼ [Automated Component Exit] ──► Electronic sensor verification prevents double-hits
High-Rigidity Lower Cushioning Platens
Material Selection: Stress-Relieved Medium Carbon Forged Steel
Functional Intent: Eliminates micro-vibrations across the lower bolster plate to preserve uniform cutting clearances.
Segmented Blanking Punch Matrix
Material Selection: Tungsten-Carbide Matrix Inserts
Functional Intent: Extends structural tool longevity up to ten times past standard cold-work tool steels when shearing high-tensile alloys.
Proactive Stock Lifter Formations
Material Selection: Mirror-Polished Structural Bronze with Solid Lubricant Pockets
Functional Intent: Lifts the shifting carrier strip safely above deep draw boundaries without introducing surface scuffing or cosmetic friction marks.
Mechanical Fatigue Control & Precision Structural Tooling
The long-term asset value delivered by an elite metal stamping die manufacturer depends on controlling physical deformation during high-frequency impact cycles. Our internal tool blueprints utilize advanced structural layouts to ensure smooth component processing:

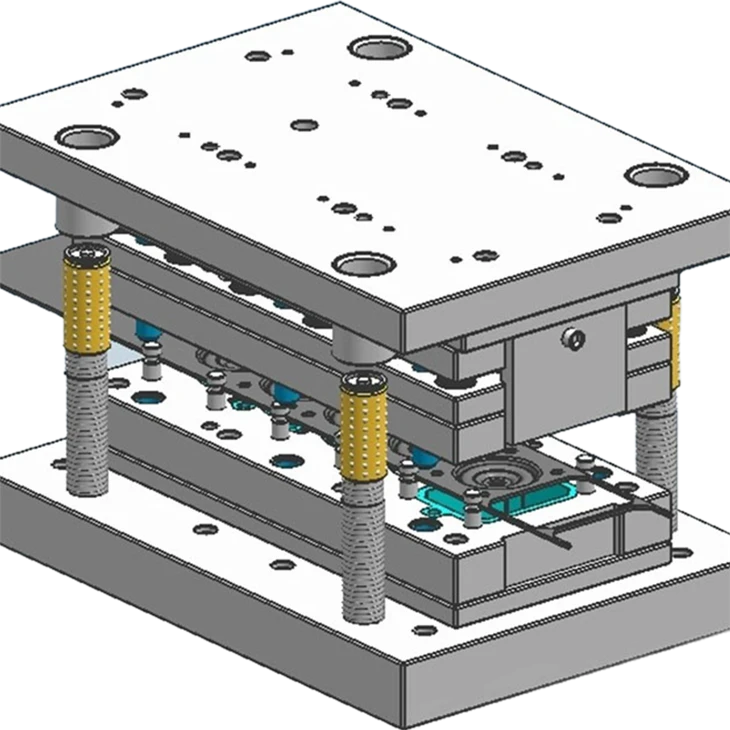

Concentric Guiding Symmetry
To isolate intense lateral shear forces during structural steel piercing, we install heavy-duty outer guide pillars combined with inner precision sub-guide pins, maintaining exact spatial alignment between matching upper and lower working segments.
Quick-Access Maintenance Channels
High-wear bending radii and cutting edges are engineered as isolated, key-indexed cassette modules. Setup technicians can slide out individual module trays directly inside the press window to sharpen punches, compressing standard five-hour maintenance schedules into brief thirty-minute adjustments.
Optoelectronic Misfeed Protection
We embed high-speed proximity electronic sensors within the stock locating blocks. If a material feed variation of even 0.01 mm is flagged, the integrated sensor circuit transmits a stop signal to the press clutch within milliseconds, completely safeguarding the tool from catastrophic alignment crashes.
Operational Strategy: Production yield is optimized when mechanical variables are controlled mathematically. Our structural designs guarantee that all active wear zones utilize global standard hardware components, enabling your overseas maintenance staff to source direct replacement parts locally without causing extended factory downtime.
Multi-Layered Quality Verification & Cross-Border Logistics Packaging
Our internal quality control workflows follow strict international traceability benchmarks to support high-exposure supply networks:
Sub-Surface Eddy-Current Testing: Every heavy forging and hardened tool steel plate undergoes thorough non-destructive testing (NDT) to eliminate internal structural micro-voids prior to execution.
Blue-Light 3D Deviational Mapping: Pilot stamped samples from final production tryouts are scanned using non-contact optical tracking arrays, overlaying physical dimensions directly against your native 3D blueprints to verify complete tolerance adherence.
Traceable Technical Document Packages: Shipped industrial hardware setups are accompanied by a full digital engineering profile including comprehensive 3D step assembly files, detailed material heat-treatment certifications, and complete standard operating manuals.
