Kinetic Synchronization: Volumetric Efficiency via Progressive Die Stamping Tooling
Securing market dominance in modern mass fabrication requires cutting down structural cycle times while eliminating manual parts handling between separate presses. When manufacturing intricate, multi-bend sheet profiles, relying on isolated single-stage setups introduces heavy positioning errors and logistically challenging inventory queues. Our specialized engineering laboratory resolves these efficiency roadblocks through advanced progressive die stamping tooling. By linking distinct piercing, forming, and shearing profiles sequentially within a single continuous strip carrier, we enable your automated systems to transform raw metal coils into complete components with every stroke of the press.
Structural Parameters & Station Capability Profiles
Our high-velocity manufacturing systems are configured to interface seamlessly with precise servo-driven strip feeders, utilizing specialized metallurgy to match extreme vibrational demands:

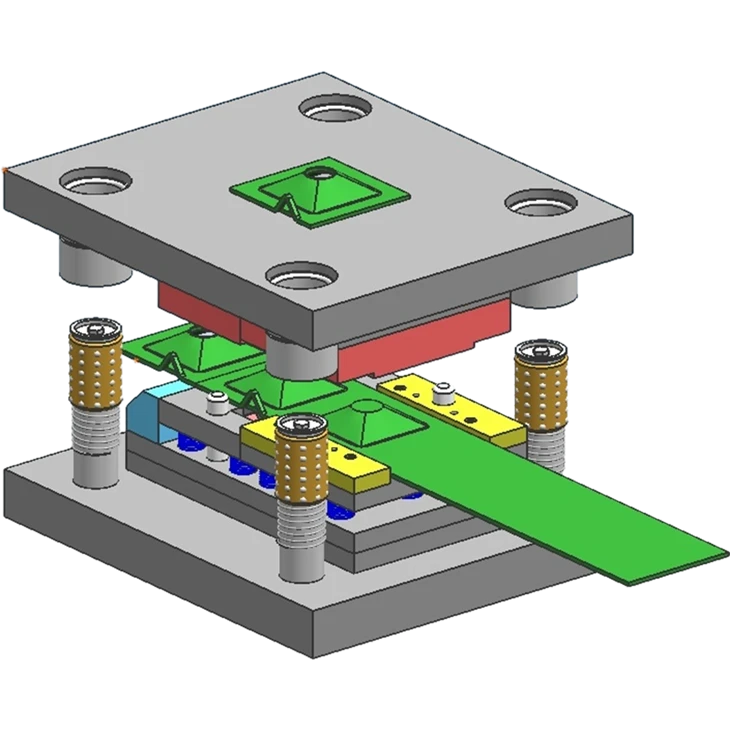

[Coil Reel Feed] ──► [Pilot Alignment Pins] ──► [Precision Piercing] ──► [Forming Layout] ──► [Cut-Off Exit]
Monoblock High-Stiffness Backing Plates
Metallurgy Selection: Forged Alloy Steel 4140 (Normalized)
Engineering Purpose: Absorbs intense concentrated stripping impacts to eliminate micro-flexing across the upper shoe assembly.
Segmented Blanking Punch Matrix Inserts
Metallurgy Selection: Micro-Grain Tungsten Carbide Matrix
Engineering Purpose: Preserves exact cutting clearances over millions of continuous hits when shearing tough stainless or spring steels.
Positive-Position Carrier Strip Lifters
Metallurgy Selection: Hardened Tool Steel with High-Elasticity Internal Gas Springs
Engineering Purpose: Elevates the advancing metal carrier strip smoothly above critical bending walls to eliminate line progression jams.
Integrated Knock-Out Ejection Assemblies
Metallurgy Selection: Shock-Resistant S7 Steel Plates
Engineering Purpose: Actively forces completed parts out of the die cavity to support clear gravitational drop paths at high stroke rates.
Multi-Station Alignment Security & Anti-Deflection Architecture
The real-world precision of a high-speed progressive die stamping tooling layout relies on controlling the material carrier strip as it progresses through consecutive manufacturing stations. Our specialized design blueprints integrate smart mechanical features to lock down dimensional drift:
Dual-Stage Precision Guide Assemblies
To isolate variable lateral thrust forces generated during intense asymmetric bending, we utilize heavy-duty outer ball-bearing guide pillars paired with inner, micro-honed sub-alignment pins for micron-level tracking accuracy.
Quick-Access Segmented Cassettes
High-wear active stations-such as small piercing punches or intricate coining blocks-are built as self-contained insert modules. Operators can unscrew and slide out individual cassette trays directly inside the press window for quick sharpening, reducing tracking setup times.
Vacuum Scrap Evacuation Controls
To completely eliminate slug pulling-where small scrap metal flakes adhere to punch faces and ruin cosmetic component surfaces-our cutting punches are machined with internal venting paths connected to a regulated vacuum draw system that pulls scrap downwards.
Operational Paradigm: Continuous manufacturing stability is achieved when mechanical wear is tracked numerically. Our progressive tool designs feature mechanical stroke counters and embedded sensor pads, allowing production supervisors to accurately predict tool sharpening cycles before part edge burrs cross quality limits.
Micro-Metric Component Validation & Cross-Border Compliance
Our internal validation and testing laboratories operate under strict international data-logging metrics to ensure smooth production integration across global manufacturing infrastructure:
Internal Metallurgical Void Scanning: Every forged backing plate and hardened tool steel block undergoes comprehensive ultrasonic non-destructive testing (NDT) to identify and reject internal material faults before final surface grinding.
Blue-Light 3D Deviational Mapping: Trial component strips from final high-speed press runs are analyzed using optical scanners, generating full-body dimensional color maps that compare physical part geometries directly to your native 3D blueprints.
Traceable Technical Engineering Records: Shipped tool assemblies are accompanied by an archived digital file infrastructure containing complete 3D step assembly models, material heat-treatment certifications, press timing benchmarks, and a wear parts ledger with global commercial part numbers.
