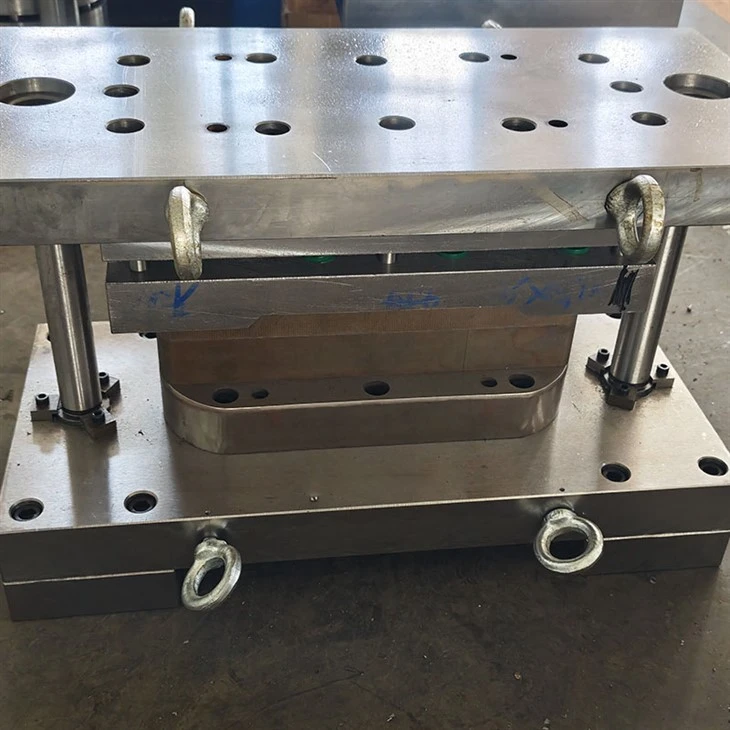

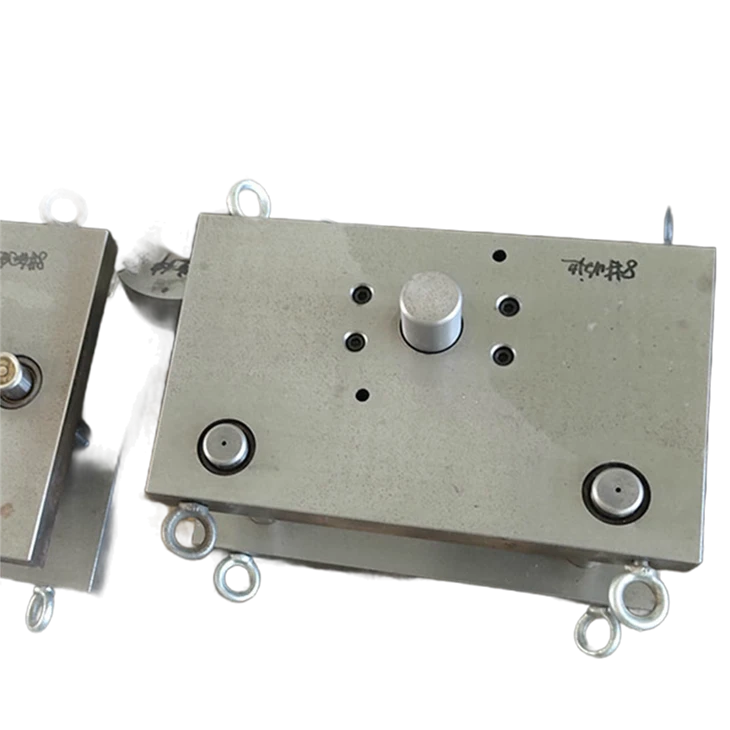

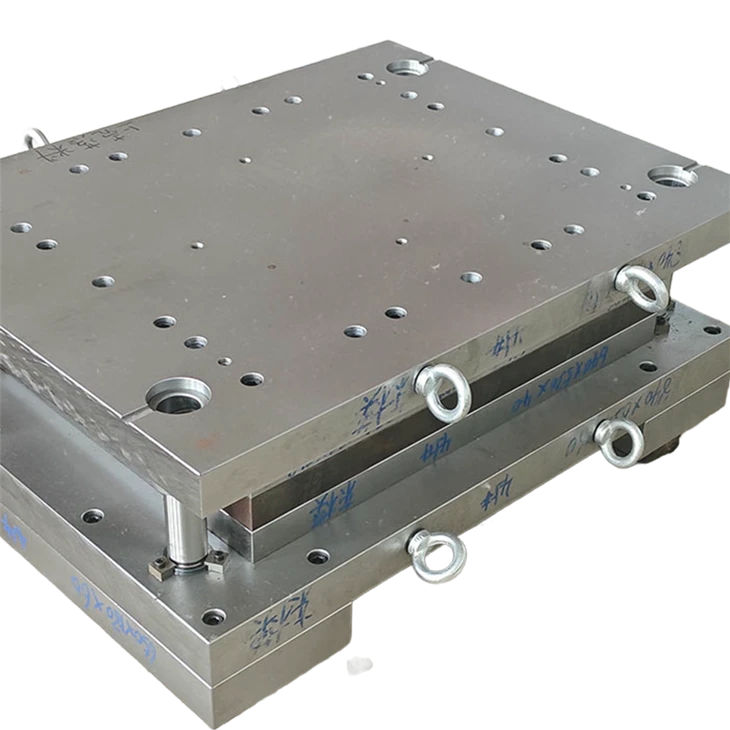

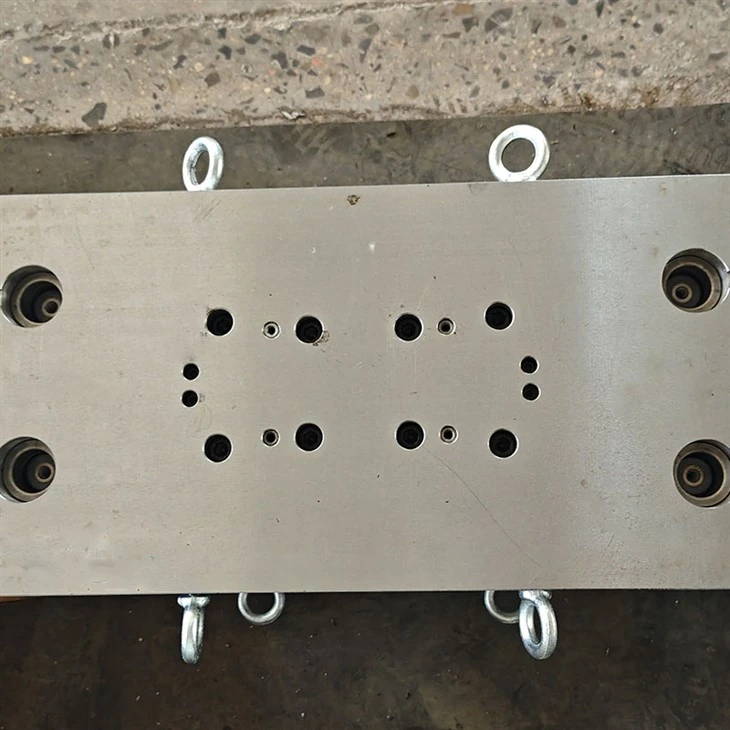

Advanced Forming Die Systems for Complex 3D Metal Sculpting
Are you encountering severe material thinning, wrinkling, or splitting during your deep-drawing operations?
Flawless plastic deformation requires a deep understanding of metal flow dynamics and surface friction. As an industry-leading stamping tool manufacturer, we design and build ultra-robust forming die systems engineered to guide sheet metal into intricate, multi-dimensional profiles with uniform wall thickness and zero surface defects.
Master Material Flow: Our Advanced Engineering Standards
From shallow embossing to severe deep drawing, our metal forming dies are designed to manage extreme compressive and tensile stresses while preserving the structural integrity of the workpiece.
Optimized Draw Bead Geometry: Custom-engineered draw beads regulate material flow resistance into the cavity, preventing material tearing in high-stress zones.
Draw-Ratio Calculation & FEA Simulation: Every contour is analyzed using advanced finite element analysis to predict and eliminate thinning before steel is cut.
Premium Nano-Surface Coatings: Available with specialized TD (Thermal Diffusion), PVD, or CVD treatments to drastically reduce friction coefficients and eliminate galling.
Nitrogen Gas Spring Cushioning: High-tonnage nitrogen manifolds provide uniform, controllable blank holder pressure throughout the entire press stroke.
Manufacturing Framework: Forming Tooling Specifications
================================================================================ Tooling Classification | Deep Drawing Die, Embossing Tool, Flanging Die, Stretch Forming Compatible Materials | High-Strength Low-Alloy (HSLA), Aluminum 6061/5052, Stainless Steel Die Base / Insert Steel | Cr12MoV, DC53, SKD11, Caldie, or Premium Solid Carbide Dimensional Tolerance | Maintained within ±0.015 mm across complex curves Lubrication Integration | Automated internal draw-compound spray channels pre-machined ================================================================================
High-Volume Production Applications
Our custom-engineered stamping forming dies deliver high repeatability across specialized industrial assembly lines:
Aerospace & Body Panels: Sculpting complex, aerodynamic outer skins and structural reinforcing ribs.
Kitchenware & Food Grade Handling: Deep-drawing seamless stainless steel sinks, containers, and cookware.
Renewable Energy Components: Precise stamping of hydrogen fuel cell bipolar plates and solar bracket systems.
Our Anti-Wrinkling Guarantee: By combining high-precision CNC hard-milling with meticulous hand-stoning by master toolmakers, our draw die cavities exhibit mirror-like finishes. This eliminates localized friction variations-the number one cause of component wrinkling and cosmetic marking.
Partner with an Elite Forming Die Factory
Stop guessing with complex material behaviors. Invest in a heavy-duty forming die supplier that delivers tooling engineered for predictable, high-speed stamping success.
