Precision Segmented Production: The Industrial Power of Single Operation Dies
Are complex progressive tool synchronizations causing frequent line stoppages on your press floor? Do you require targeted, isolated sheet metal modifications on pre-formed assemblies?
In heavy fabrication, consolidating every step into a single piece of machinery isn't always the smart move. As an expert global stamping tool manufacturer, we build heavy-duty single operation die units. These standalone tools focus exclusively on executing one dedicated metallurgical transformation-whether it is a precise shear, a sharp notch, or a localized flange-per individual press stroke, giving you maximum control over individual part variables.
Technical Audit: Is a Standalone Tooling Layout Right for You?
Q1: How does a single operation die lower ongoing maintenance costs?
Unlike progressive tooling where one broken punch halts the entire line, a single stage press die isolates the wear zone. Maintenance is localized, tool steel sharpening takes minutes, and your auxiliary press beds can keep running unhindered.
Q2: What choices of tool metallurgy do you supply?
Our single operation tooling blocks are machined using high-shock matrix tool steels like AISI A2, O1, or D2. For high-tensile materials, we apply a deep Vanadium Carbide (VC) thermal diffusion layer to ensure the cutting edges withstand repetitive heavy impacts without micro-chipping.
Q3: Can these dies be integrated into manual press lines?
Absolutely. We engineer oversized guide pillars, error-proof nest locators, and dual-hand proximity safety clearances specifically for manual-feed press operations and synchronized tandem lines.
Engineering Profile: Tooling Capabilities
Plaintext

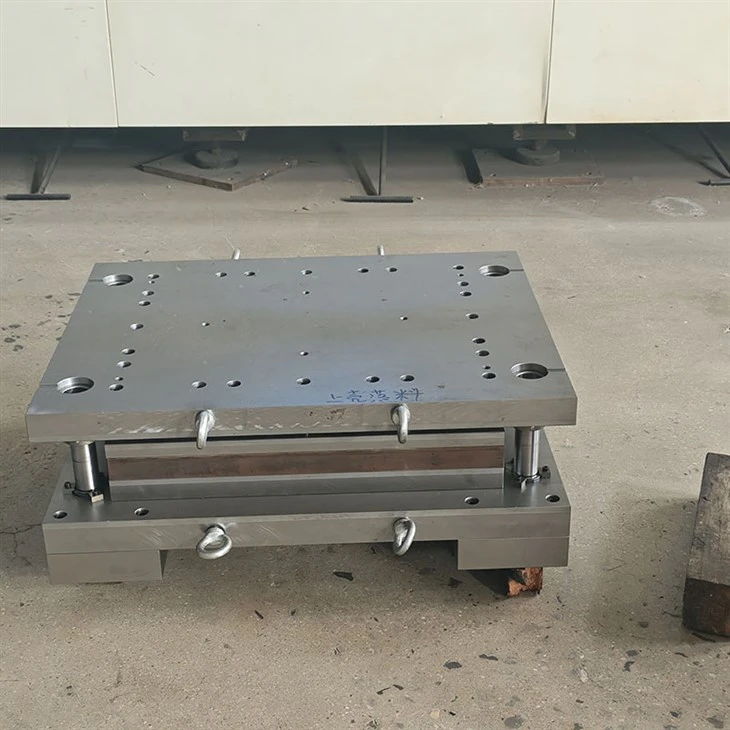

► Tool Nomenclature : Single Operation Die / Standalone Press Unit ► Primary Functions : Isolated Notching, Perimeter Trimming, Localized Flanging ► Material Gauge Range : 0.4 mm to 10.0 mm Heavy Plate Thickness ► Positional Feed Type : Mechanical Finger Stops, Dowel Nests, or Laser Alignments ► Die Set Alignment : Two-Post or Four-Post Precision Ball Bearing Guideways
Real-World Industrial Deployments
Our rugged custom single operation dies provide reliable stamping cycles across heavy manufacturing infrastructure:
Structural Steel Framing: Punching high-tonnage mounting slots into pre-rolled structural channels and I-beams.
Tandem Press Line Setup: Operating as part of a multi-press robotic transfer line for commercial appliance panels.
Secondary Off-Line Alterations: Adding custom localized design variations or cable-entry notches to standardized enclosure models.
Our Error-Proofing (Poka-Yoke) Guarantee: To eliminate operator placement mistakes during manual feeding, our single operation die factory integrates custom-contoured 3D nests that match your pre-formed parts exactly. If the component is not positioned perfectly, the press sensor blocks the stroke, protecting your tool and keeping scrap rates at zero.
Request a Blueprint Evaluation from a Leading Stamping Factory
Maximize your shop floor versatility. Partner with a dependable single operation die supplier dedicated to producing high-impact, low-maintenance standalone tools.
