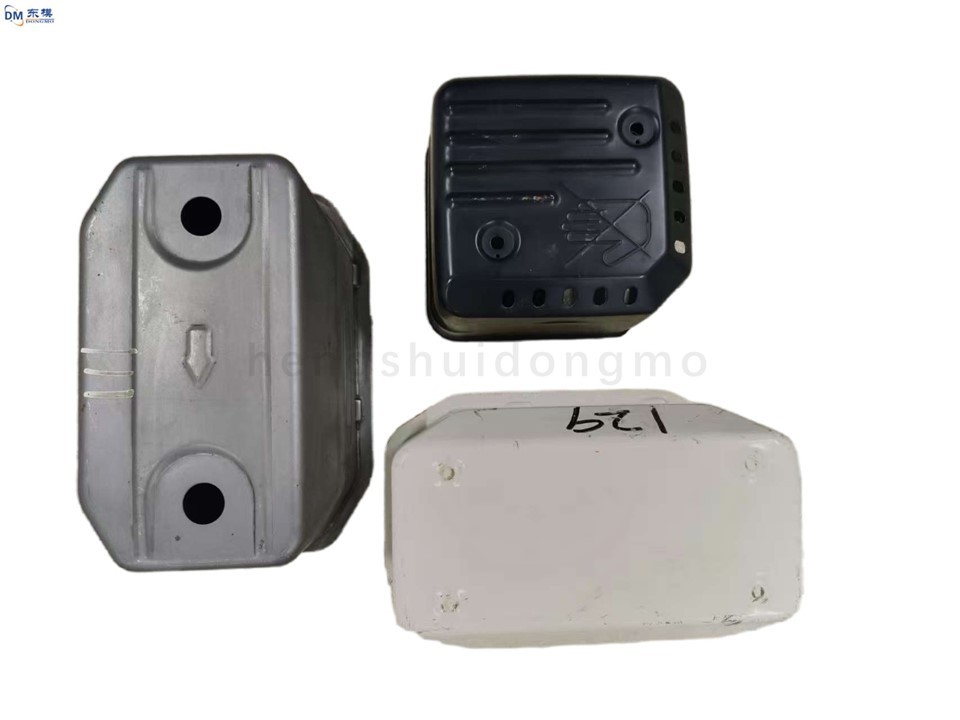

Automotive Heat Shield, Metal Cover Stamping Parts

The complex structure of composite molds is the root cause of their debugging and maintenance challenges. Unlike single-function molds, composite molds integrate multiple processes such as blanking, punching, forming, and trimming within a single mold. The number of internal parts far exceeds that of ordinary molds, and the precision requirements for the fit between components are extremely high. From the core punch and die components to the guiding mechanism, unloading device, and the feeding module for precise material flow control, every link is interconnected and interdependent. This highly integrated and complex structure not only requires precise planning of the spatial layout and movement trajectory of each component during the design phase but also poses stringent challenges to the subsequent assembly process. Even a tiny installation deviation of a part can disrupt the operational balance of the entire mold, creating hidden dangers for subsequent debugging and maintenance, fully demonstrating the chain of problems brought about by the complexity of composite mold structures.

The structural complexity directly increases the debugging difficulty of composite molds, and inadequate debugging further exacerbates the probability of failure, creating a vicious cycle. Debugging a composite mold is not simply a matter of starting the equipment; it requires technicians with extensive experience to repeatedly calibrate the mold's closing height, clearance tolerances, pressure parameters, and other parameters. Due to its complex structure, the debugging process requires coordinating the operation of multiple components. Even a slight deviation in any parameter can lead to mold jamming, product dimensional errors, or even equipment overload. More challenging is that some compound mold failures are not caused by a single factor but rather by multi-stage interconnected problems arising from the complex structure. For example, insufficient guiding accuracy can simultaneously cause unloading problems and punch wear. This necessitates meticulous troubleshooting to pinpoint the core issue, further highlighting the inherent difficulty of compound mold debugging and significantly increasing the challenge of fault prevention.

The combined difficulty of debugging and structural complexity directly leads to numerous challenges in compound mold maintenance, making frequent failures a common occurrence in production. Compound mold maintenance needs to cover multiple dimensions, including cleaning, lubrication, parts replacement, and precision testing. However, the complex structure increases maintenance blind spots, with some critical components obscured by other components, making quick disassembly and repair difficult, thus increasing maintenance time and operational complexity. Furthermore, due to the complex structure, the vulnerable parts of the compound mold are scattered, and the wear patterns of different components vary considerably, making it difficult for companies to establish standardized maintenance cycles, easily leading to over-maintenance or delayed maintenance. When maintenance is not timely or adequate, problems such as accelerated wear of parts and decreased precision will occur in a concentrated manner, leading to frequent failures of compound molds such as material jamming, chipping, and unqualified molding. This not only affects the production schedule but also increases maintenance costs, further demonstrating the close relationship between the difficulty of maintaining compound molds and their susceptibility to failure.
