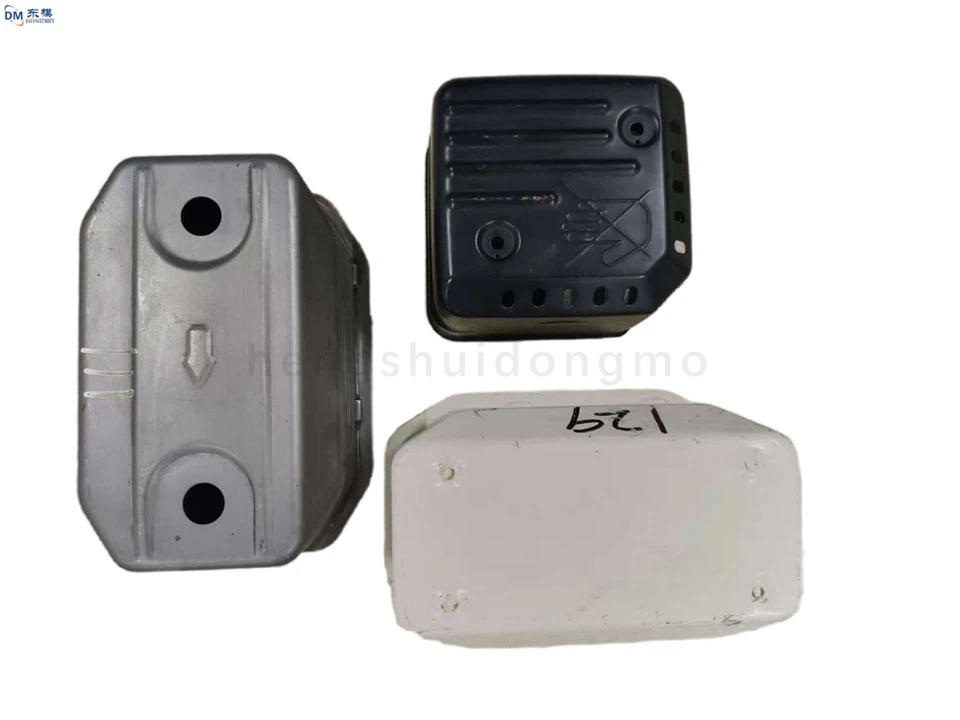

Metal Casing, Protective Cover, Stamping Dies

Metal stamping die design is a core step, requiring adherence to actual production needs while balancing practicality and economy. Before designing, the workpiece dimensions, material, and stamping process must be clearly defined, and the stamping force and die clearance accurately calculated to avoid die damage or workpiece defects due to parameter deviations. Special attention should be paid to the die cutting edge design, selecting an appropriate cutting edge angle based on the sheet metal thickness and hardness to ensure smooth stamping without burrs. Simultaneously, the die structure should be optimized, the assembly process simplified, and wear-resistant, high-toughness die steel selected to extend the die's service life and avoid over-design leading to cost waste.

The die manufacturing process must be standardized and orderly, with precision controlled step by step. The first step is raw material processing, where the die steel is cut and ground, and processed into a prototype die through turning, milling, and grinding processes, strictly controlling dimensional errors. The second step is die heat treatment, where the die cutting edges and cavities are quenched and tempered to improve the die's hardness and wear resistance, preventing cracking and deformation during use. The third step is mold assembly, where guide pillars, guide sleeves, pressure plates, and other components are precisely assembled to ensure smooth fit without jamming or misalignment. After assembly, preliminary adjustments are made to identify and eliminate assembly defects.

Trial molding and optimization are the final steps in the manufacturing process, directly determining whether the mold can be put into use. During trial molding, the same raw materials as in actual production are used, the equipment is run at low speed, and the mold's operating status and workpiece quality are observed to identify and eliminate problems such as jamming, workpiece deformation, and burrs. For defects found during trial molding, the mold's cutting edge, clearance, or structure is adjusted promptly, and trial molding is repeated until it meets the required standards. After passing the test, the mold is properly marked, and design parameters and manufacturing details are recorded to facilitate subsequent maintenance and refurbishment, ensuring stable operation after the mold is put into production and improving production efficiency.
