Custom Safety Shoes Steel Header Molds | Steel Toe Cap Stamping Dies Manufacturer

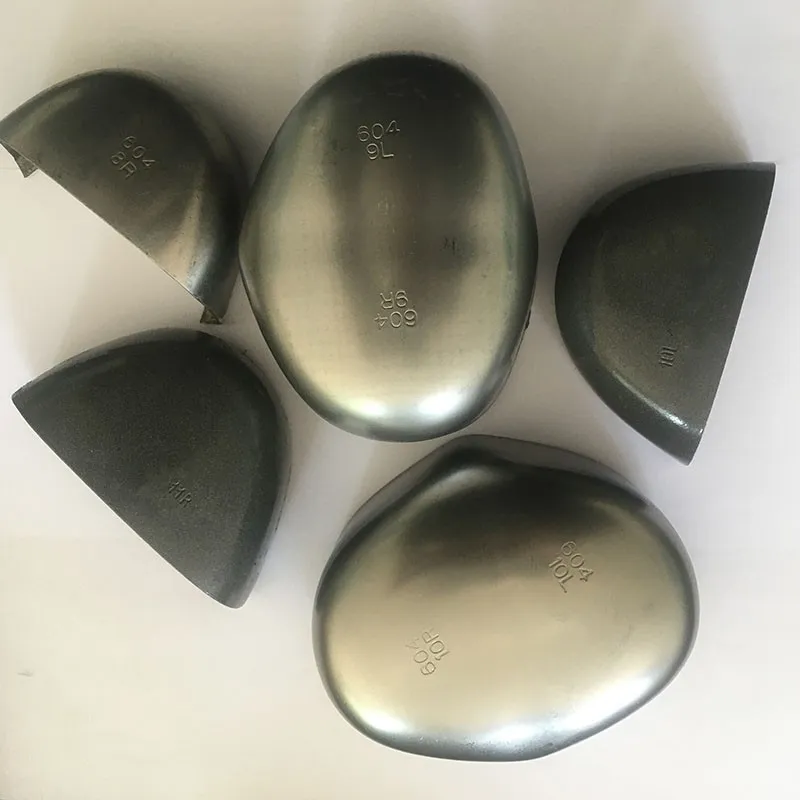

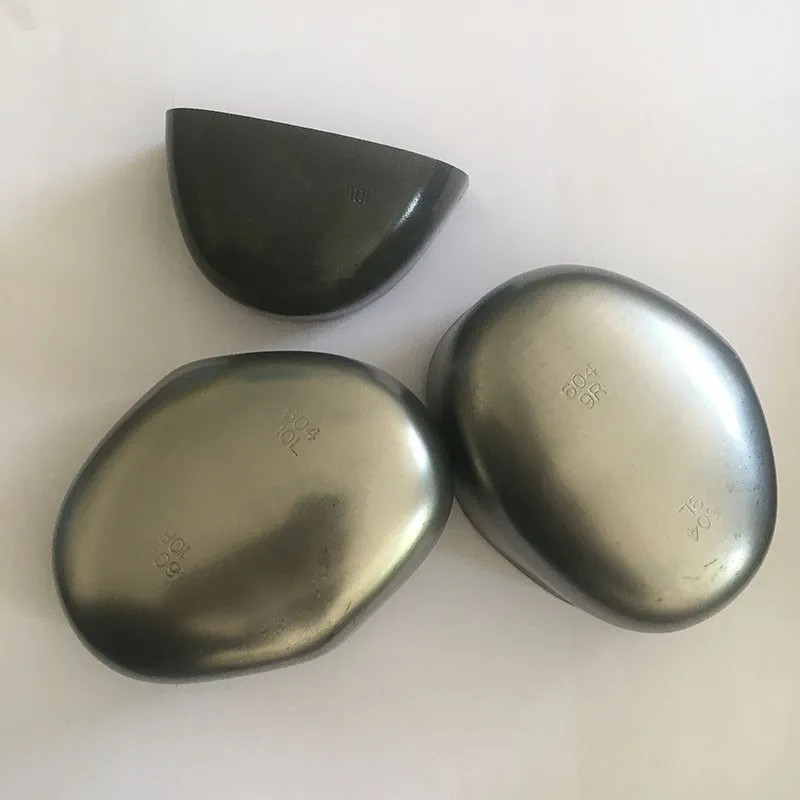

A safety shoe is only as protective as its steel toe cap. That curved piece of hardened steel sitting inside the footwear upper is what stands between a worker's foot and a falling object or a compression hazard. If the steel header isn't formed correctly-if the radii are inconsistent, if the edges are sharp, if the dimensional profile drifts outside the ASTM or EN standard envelope-the entire shoe fails certification. That means wasted production, rejected lots, and reputational damage you don't need.

The mold that forms that steel header is where the battle for consistency is won or lost. We manufacture high-precision steel header molds specifically engineered for safety footwear production lines. These are not generic stamping dies repurposed from automotive or appliance work; they're tooling designed around the unique geometry and material behavior of safety toe caps. Steel headers typically start as flat blanks cut from cold-rolled carbon steel-usually Q235, SPHC, or equivalent grades-in thicknesses ranging from 1.5 mm to 2.5 mm. The blank is then formed through a series of drawing, bending, and trimming operations into a three-dimensional cap with a specific internal clearance profile that accommodates the wearer's toes while meeting minimum impact and compression resistance requirements.

Our safety shoe steel header molds are available in two primary configurations depending on your production volume and part complexity. For high-volume manufacturing lines running dedicated safety shoe styles, we recommend progressive stamping dies. These dies take a continuous steel strip through sequential stations-blanking, drawing, coining the identification markings, piercing ventilation holes if required, trimming the peripheral edge, and finally separating the finished cap. A well-designed progressive die can deliver 40 to 80 finished steel headers per minute with consistent geometry across the entire batch. The progressive approach is ideal when you're producing hundreds of thousands of the same steel header design annually.

For shorter runs, style changeovers, or larger-format caps used in heavy industrial footwear, transfer dies or multi-station single-hit dies offer greater flexibility. Individual blanks are loaded and moved between stations, which allows for deeper drawing depths and more aggressive forming angles without the constraints of a continuous strip carrier. This configuration also makes it easier to incorporate in-die marking stations for size codes, manufacturer logos, and certification symbols required by ASTM F2413 or EN ISO 20345.

The material science behind these molds is what separates a million-stroke tool from one that needs refurbishment after a few hundred thousand cycles. The working components-the punch that forms the cap interior, the die cavity that shapes the exterior profile, and the trimming edges-are machined from high-carbon, high-chromium cold-work tool steels. Our standard specification is CR12MOV or SKD11, vacuum-quenched and triple-tempered to a working hardness of 58-62 HRC. For production environments running abrasive materials or demanding extended maintenance intervals, we upgrade to DC53 for improved toughness and crack resistance, or incorporate carbide inserts (YG15/YG20 grade) on the trimming and coining stations. Surface finishes on all forming radii are polished to Ra ≤ 0.4 μm to minimize friction and eliminate micro-scratches that could compromise the corrosion resistance of the finished steel header.

Dimensional control is non-negotiable because safety footwear certification is a pass/fail proposition. The internal height, width, and length of the steel header must fall within the tolerances specified by the applicable standard-typically within ±0.5 mm for internal clearance dimensions. Our molds hold finished part tolerances to ±0.1 mm on critical profiles and ±0.05 mm on coining depth for stamped markings. Every mold undergoes tryout and dimensional validation on a CMM before shipment, and we provide full dimensional inspection reports with each delivery.

If you're a safety footwear manufacturer looking to bring steel header production in-house, or if you're a contract stamper seeking more reliable tooling for your safety shoe customers, we can support your project from DFM analysis through final tryout. Send us your steel header drawing or a sample cap, and we'll engineer a mold solution that meets your volume targets and certification requirements.

Specifications are based on standard safety shoe steel header designs. Actual values will be confirmed based on customer-provided drawings and production volume requirements.
