Technological Integration in Modern Press Shops

High-speed automated manufacturing lines demand a level of tool reliability that standard mechanical designs cannot provide. As an internationally certified stamping die manufacturer, we engineer intelligent工装 systems designed to function seamlessly within modern cyber-physical production environments. Our engineering approach directly neutralizes common manufacturing variables such as thermal displacement, material feeding slippage, and tool structural deflection. By implementing integrated sensor cavities, highly uniform stress-relieved die plates, and premium metallurgical formulas, we ensure that your high-volume automated stamping cell operates uninterrupted across multiple production shifts.

Production System Architecture & Matrix

Tooling Domain	Engineering Design & Integration Criteria
System Classification	Multi-Stage Interlocking Dies, Servo-Driven Press Tools
Working Inserts Chemistry	PM-M4, Vanadis 8, Vancron 40, DC53, Caldie
Compatible Coil Stock	High-Strength Alloys, Pre-Painted Steel, Pure Copper
Processing Thickness	0.08 Millimeters to 14.0 Millimeters Sheet Gauges
Max Design Output	Validated for Form Cycles Exceeding 400 SPM
Positional Matrix Accuracy	Guide Bushing Concentricity Maintained Within 0.002mm
Wear-Layer Engineering	PVD Cross-Layer Nitriding, CVD Boronizing Treatments
Line Automation Protocols	Hardwired In-Die Sensor Channels, Mis-Feed Sensors
Diagnostic Code Suites	UG NX Advanced Mold Design, AutoForm Progression
Regulatory Execution	Structured Compliance Under IATF 16949 Standards

Advanced Mechanical Architecture

Our manufacturing methodology utilizes three core structural innovations designed to ensure absolute physical stability and maximum machine uptime:

1. Smart Sensor Array Integration

To prevent catastrophic tool failure caused by un-ejected parts or material mis-feeding, our die sets can be pre-machined with custom sensor pockets. High-sensitivity inductive proximity sensors and acoustic emission sensors are safely embedded within the die plates. These units interface directly with the press emergency stop circuit, instantly halting the machine within a fraction of a millisecond if a strip deviation is detected, preserving the structural integrity of the complex punch configurations.

2. Advanced Micro-Gap Punch Control

Maintaining a completely uniform cutting clearance across complex component geometries is critical for preventing early punch wear and burr formation. We achieve this by deploying sub-micron wire EDM cutting parameters on all matching stripper and die block profiles. This tight micro-gap control reduces structural stress on the cutting edges during the breakthrough phase, dramatically increasing the total lifespan of the tool before sharpening is required.

3. Stress-Relieved Die Shoes and Sub-Plates

Heavy-gauge or high-speed stamping subjects the tool base to intense cyclic impact stress. To eliminate the risk of structural warping over millions of strokes, all our top and bottom die shoes undergo multiple cycles of thermal stress-relief annealing post-rough-machining. This process stabilizes the micro-crystalline structure of the steel, ensuring that the critical alignment between the upper and lower tool halves remains perfectly true throughout the decades of the tool's service.

Rigorous Quality Assurance Sequence

Every completed tool assembly undergoes a mandatory, multi-gate validation process inside our internal testing lab prior to final client sign-off:

Volumetric Metrology Scans: The physical tool block is analyzed on a high-precision coordinate table where digital optical probes map the three-dimensional coordinates of every active station to ensure perfect CAD compliance.

Continuous Feed Stability Runs: The tool is mounted in our dedicated servo press to run an extended multi-hour trial at real production speeds. We carefully monitor the temperature distribution across the forming blocks and analyze the strip progression for any tracking resistance.

Component Traceability Mapping: The stamped components from our pre-delivery trial runs are archived, cataloged, and laser-etched with unique batch codes. This allows for immediate trace-back matching of physical part geometries to the exact structural stations of the tool.

Specialized Overseas Protection & Technical Packages

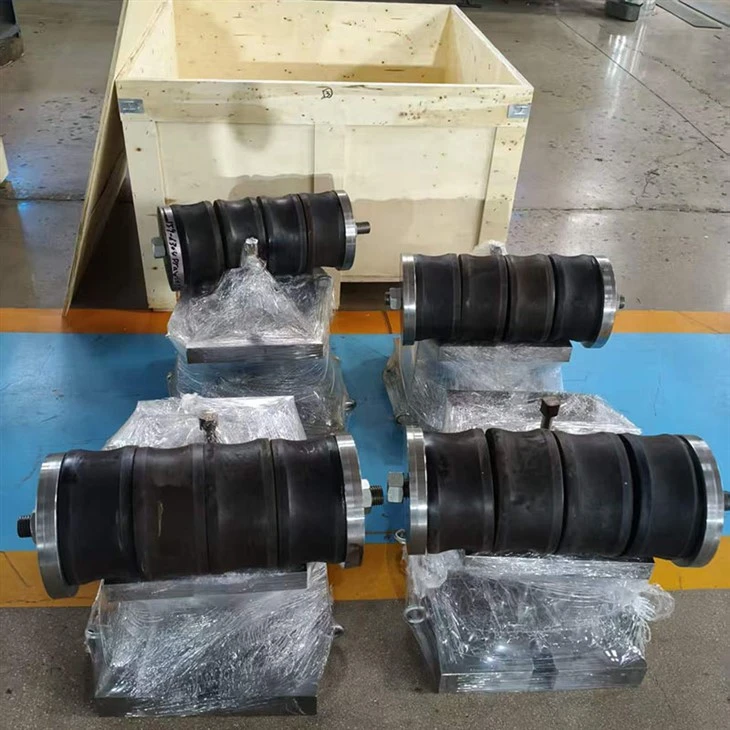

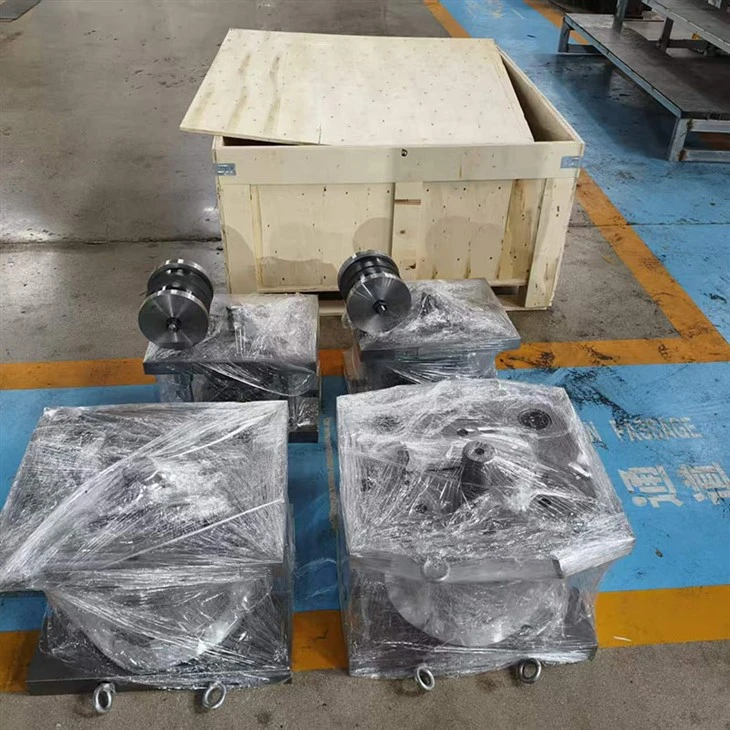

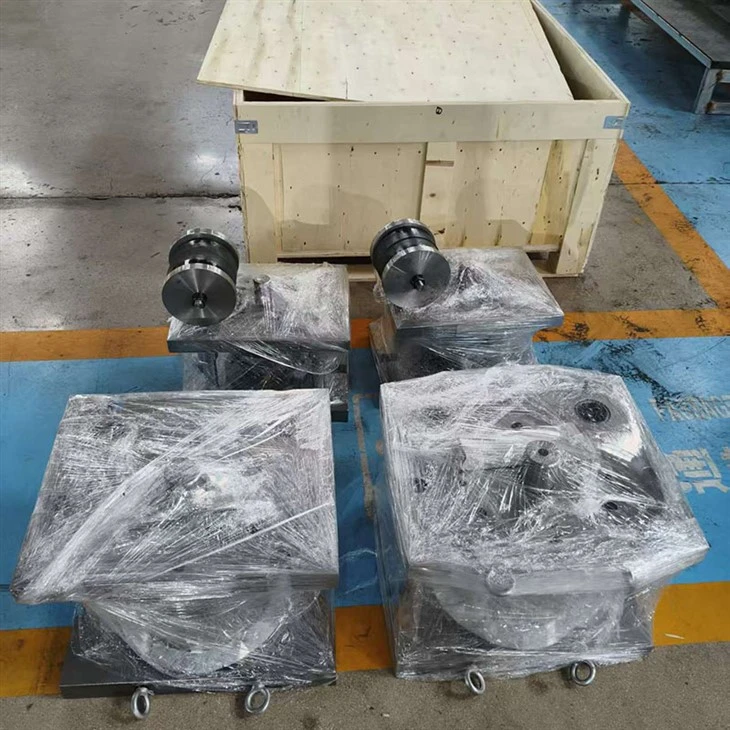

Preserving high-precision metal elements during long-distance maritime transit requires strict adherence to international industrial preservation standards. Every bare metal surface is treated with an advanced tactical moisture-barrier oil layer, vacuum-sealed inside heavy industrial bags injected with specialized Vapor Corrosion Inhibitors (VCI), and safely fixed inside a custom-built, fumigation-free structural wooden crate featuring reinforced base runner timbers.

An external, heavy-gauge protective document storage enclosure contains complete structural documentation: full digital native 3D files, 2D tool assembly schematics, complete material heat treatment documentation, standard component replacement codes, and a comprehensive operations guide indicating optimal shut-height dimensions and required press stroke parameters.
