Industrial Grade High Endurance Stamping Die For Precision Engineering

Operational Reliability & Supply Chain Risk Mitigation

Tooling failure directly jeopardizes factory delivery schedules and increases operational overhead. As an established global stamping die manufacturer, we design heavy-duty press tools engineered to withstand the extreme mechanical realities of continuous manufacturing. Our engineering process eliminates structural fatigue by matching high-performance metallurgy with exact kinetic balance. We ensure your press shop achieves optimal tool availability, minimizing unplanned downtime and securing a highly predictable cost-per-part over millions of continuous production cycles.

Technical Infrastructure & Architecture Specifications

Advanced Tooling Engineering Framework

How we eliminate dimensional drifting during long production runs:

The primary cause of dimensional deviation in sheet metal forming is the relaxation of internal stresses within the tool steel itself. To secure absolute geometric stability, our die plates undergo an intensive sub-zero cryogenic treatment after standard vacuum quenching. This thermal process converts remaining austenite into stable martensite, preventing microscopic shifting of the critical insert pockets even when subjected to hundreds of thousands of tons of cyclical press pressure.

How we maximize maintenance accessibility on the shop floor:

Traditional complex progressive dies require complete disassembly for basic maintenance. Our advanced architecture utilizes a standard backup plate design paired with slide-out insert blocks. Technicians can easily access, service, or sharpen primary shearing edges from the side of the press without removing the entire upper or lower die shoe assembly, reducing normal servicing windows from several hours to under thirty minutes.

How we prevent mechanical side-load deflection:

Asymmetric forming actions generate immense lateral forces that can instantly misalign fine cutting clearances. We counteract this destructive stress by integrating heavy-duty structural wear strips alongside the standard ball-bearing guide pillars. These specialized bronze-graphite wear plates absorb all horizontal thrust, protecting delicate thin-walled punches from chipping and maintaining clean, burr-free part edges.

Pre-Delivery Validation and Metrology Data Packages

Every completed tooling system undergoes a rigorous, data-driven validation sequence in our internal testing facility before receiving commercial clearance:

Microscopic Clearance Analysis: Optical alignment tracking verifies that the cutting gap is perfectly distributed across the entire strip perimeter, preventing uneven burr formation.

Dynamic Press Trial Mapping: The tool assembly is mounted to a mechanical test press to execute a full speed simulation run, evaluating strip lifter response, pilot engagement, and scrap drop reliability.

CMM Metric Certification: Stamped parts from the final production trial are measured on three-axis coordinate measuring machines (CMM) to map true part geometry against the native CAD file, ensuring complete compliance before shipping.

Maritime Transit Preservation and Engineering Assets

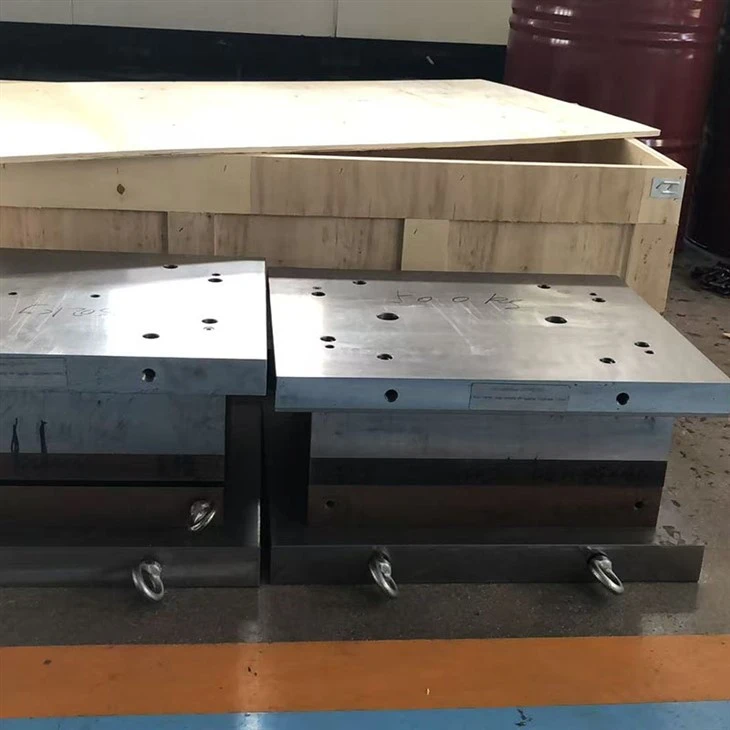

Securing precision mechanical systems during global ocean shipping demands strict execution of export preservation standards. Every raw tool steel element is treated with a specialized hydrophobic wax compound that seals the metallic pores against atmospheric moisture. The entire tool assembly is completely enclosed within heavy-duty, vacuum-sealed barrier film injected with active Vapor Corrosion Inhibitors (VCI), and firmly anchored inside a custom-built, fumigation-free structural wooden crate featuring heavy-gauge steel corner plating.

An external, waterproof tech-capsule contains a complete operational asset package: native 3D engineering datasets, detailed 2D tool assembly schematics, complete material heat-treatment certifications, a precise bill of materials (BOM), and an installation checklist detailing recommended shut-heights and nitrogen cylinder pressure parameters.
