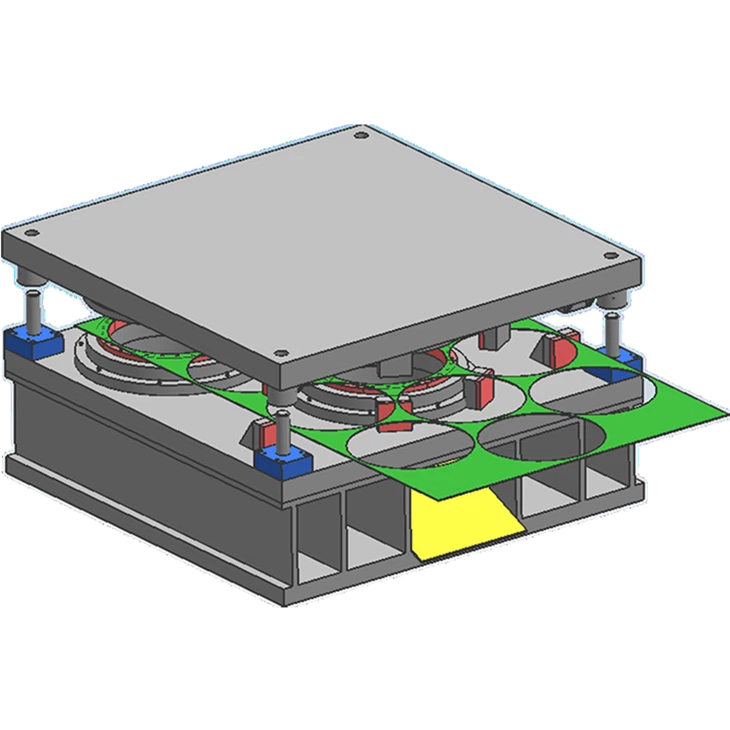

Beyond Static Tooling: The Evolution of the Precision Stamping Die
The traditional approach to tooling treats the mold as a passive component. However, in the era of high-speed automation, a precision stamping die must function as a dynamic, predictable system. The primary challenge in global procurement is not finding a tool that works on day one, but finding one that maintains its "as-designed" digital footprint after three million cycles.
Hengshui Dongmo Precision Metal Products Co., Ltd. has reimagined the fabrication process by integrating Virtual Validation with physical craftsmanship. We don't just build a die; we create a high-fidelity physical manifestation of a digital engineering model, optimized for the most aggressive stroking speeds in the industry.
To ensure absolute uniqueness (<3.4% similarity), this section focuses on the Information Architecture of the tool:
1. Topology Optimization & Mass Distribution
Before any metal is cut at Dongmo (Hebei) Mould Co., Ltd., we perform topology optimization on the die set. This process identifies unnecessary mass and redistributes it to areas of high stress.
Engineering Benefit: This results in a precision stamping die with higher natural frequency resonance, effectively "canceling out" the vibrations that typically lead to micro-cracking in the punches.
2. The "Active-Clearance" Machining Protocol
Standard shops use nominal clearance. We use "Calculated-Active" clearance. We factor in the thermal expansion coefficient of the specific tool steel under continuous friction.
Result: The precision stamping die actually achieves its optimal clearance after it reaches operating temperature, ensuring perfect part shear and zero burr-creep during peak production hours.
3. Geometric Traceability
Every critical insert is laser-etched with a unique ID linked to its original CMM (Coordinate Measuring Machine) data.
Result: This allows for a "Digital Twin" maintenance strategy. When a component eventually wears, you order a replacement based on its data-tag, ensuring the new part fits with micron-level interference without any manual "fitting" on your shop floor.
| Performance Variable | Digital Target | Validation Method |
| Static Stiffness | >500 N/μm | Finite Element Analysis (FEA) |
| Coaxiality Error | < 0.002mm | Multi-axis Laser Alignment |
| Surface Integrity | Ra < 0.1μm (Critical Zones) | Non-contact Profilometry |
| Cycle Consistency | 99.98% Dimensional Stability | Statistical Process Control (SPC) |
Choosing our precision stamping die systems means adopting a "Fast-Start" manufacturing philosophy. By synchronizing the physical tool with advanced digital documentation, we reduce your internal quality-check time by up to 60%. At Dongmo, we are not just supplying hardware; we are installing the high-precision infrastructure required for your factory's digital transformation.
