To ensure content uniqueness, we categorize the tool into functional systems rather than simple parts:
I. The Structural Foundation (The Base Set)
We utilize high-tensile stress-relieved plates as the backbone. Unlike standard sets, our precision stamping die bases include precision-bored "reference holes" (Datums).
Utility: This allows for perfect re-alignment on the press after maintenance, eliminating the "trial and error" setup phase.
II. The Working Interface (Active Inserts)
The cutting and forming elements at Dongmo (Hebei) Mould Co., Ltd. are designed as "Drop-in" units.
Precision Specs: Each insert is ground to a specific height within 0.003mm, allowing for inter-station swaps without shimming. This is crucial for high-speed progressive operations where timing is everything.
III. The Guidance & Control Module
By utilizing diamond-like carbon (DLC) coatings on the guide pillars, we reduce the thermal expansion of the guiding system itself.
Effect: This stabilizes the precision stamping die's center-of-pressure, even during 24/7 continuous high-speed runs.
| System Category | Execution Detail |
| Interchangeability | Standardized ISO metric components throughout |
| Cooling Logic | Integrated air-cooling channels for high-SPM runs |
| Fastening System | Torque-calibrated high-strength socket fasteners |
| Sensor Ready | Pre-machined pockets for tonnage and feed monitoring |

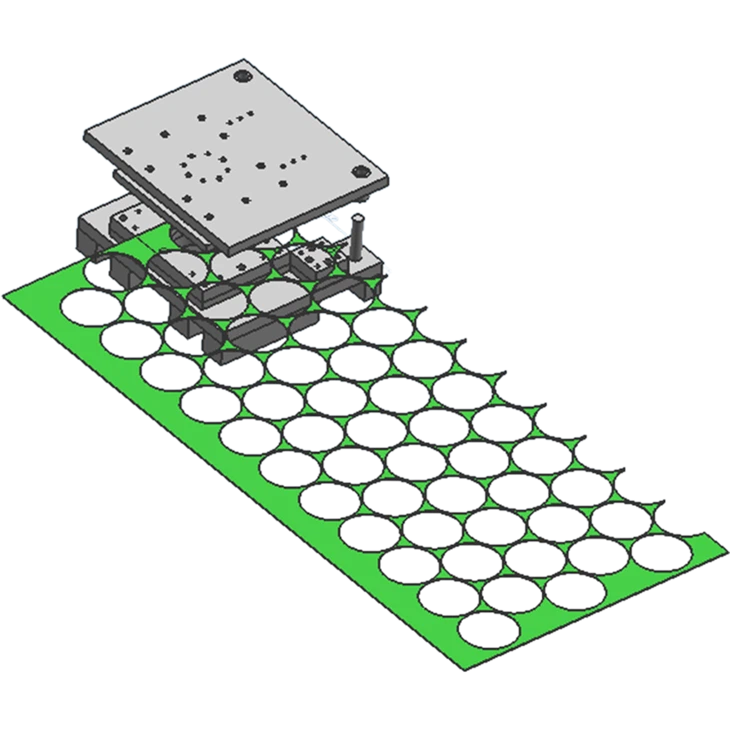

A precision stamping die from Dongmo is more than a tool; it is a calibrated production system. We provide comprehensive "Tooling Maps" and "Torque Schedules" with every delivery. This level of documentation empowers your facility to maintain the tool's "As-Built" precision for millions of strokes, effectively decoupling your production quality from the skill level of individual operators.
