Precision Stamping Die

Precision stamping mold is a type of stamping mold. It is an important tool for processing and shaping plates. It is widely used in automobiles, electronics, home appliances, aerospace and other industrial fields. Through the use of precision stamping molds, production efficiency can be improved, costs can be reduced, and product quality can be improved.
Precision stamping molds are mainly composed of the following parts:
Working parts, positioning parts, guide parts, support parts, fastening parts, buffer parts, pressing, unloading and ejecting parts.

Send Inquiry

Description

Technical Parameters

Precision stamping molds are mainly composed of the following parts:

Working parts, positioning parts, guide parts, support parts, fastening parts, buffer parts, pressing, unloading and ejecting parts.

Product Details		Company Information
Product name	Precision stamping die	Main products	Stamping die Stamping parts
Application	Processing of various metal stamping parts	Productive forces	Stamping: 2-3 million pieces/month
Material	ST14-ST16S	Productive forces	Mould: 40-60 sets/month
Standard Parts	MISUMI	Related certificates	ISO9001
Template flatness	+/-0.005mm	Package	According to customer requirements
Quantity	1 set	Application field	Aviation, automobiles, home appliances, medical, hardware, construction

Classification of precision stamping molds

According to different processing objects, precision stamping molds can be divided into metal sheet stamping molds, metal pipe stamping molds, powder stamping molds, etc. Among them, sheet metal stamping dies are the most common type and are widely used in various industrial fields. Metal pipe fitting stamping molds are mainly used for pipe fitting processing, and powder stamping molds are mainly used for powder stamping molding.

Working principle of precision stamping mold

The working principle of precision stamping mold is to use the concave mold and punch on the mold to process the plate. During the stamping process, the sheet is clamped between two dies, and the sheet is processed into the required shape through the combined force of the upper and lower dies. Usually, precision stamping molds also have auxiliary devices, such as guide components, lubrication systems, etc., to improve the processing effect and the life of the mold.

Auto parts mold

Progressive mold

stamping die 2

stamping die

Custom stamping die

High quality raw materials

metal stamping dies

Mold and Stamping Parts Supplier

Stamping precision mold

Stamping product categories

Mold and Stamping Parts Supplier

stamping tooling

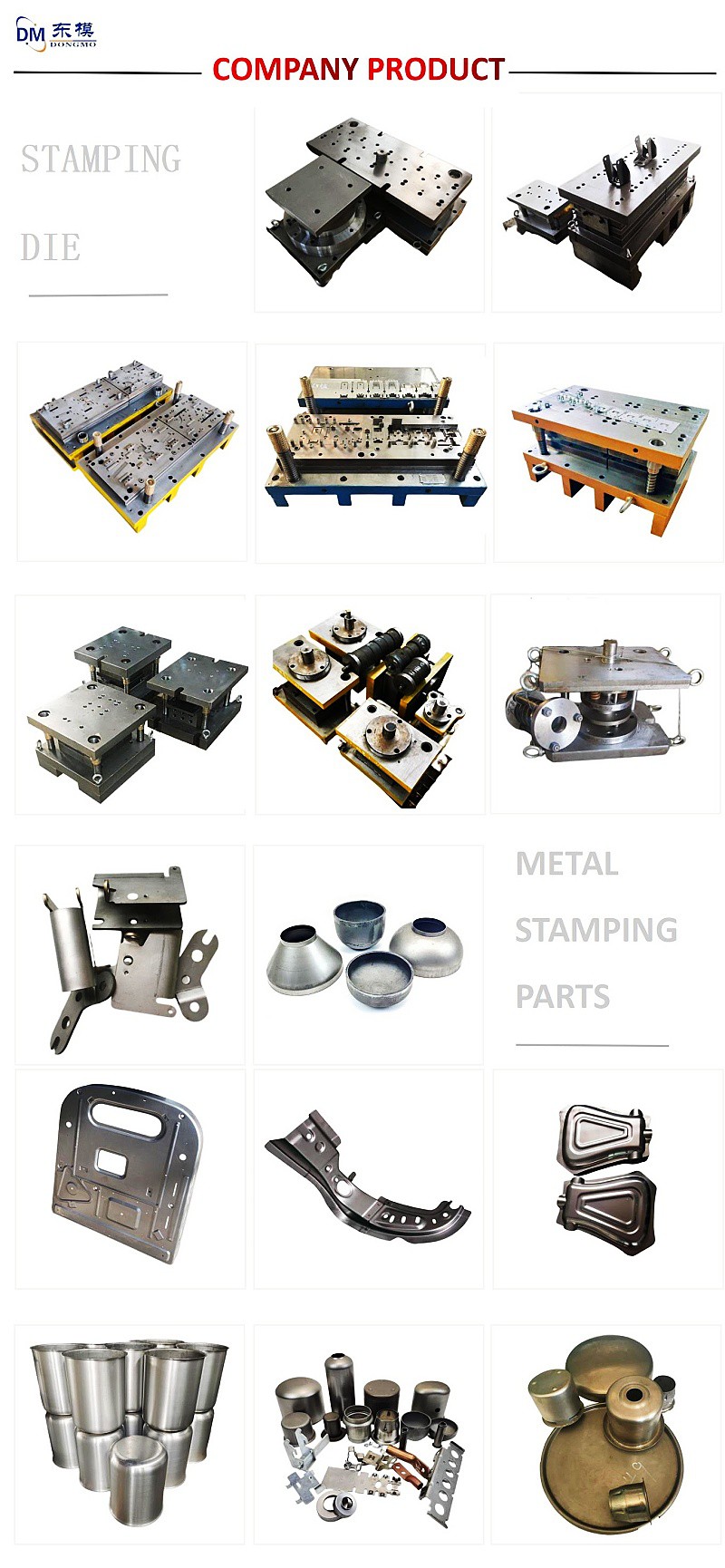

Stamping product display

FAQ

Q: Are you a manufacturer?

A: Of course. We have our own factory located in Fucheng County, Hengshui City, Hebei Province, China.

Q: What kind of production services do you provide?

A: Mold manufacturing, CNC machining, stamping, assembly, surface treatment.

Q: How about the delivery time?

A: It usually takes 3-10 weeks for delivery. If the order is more complex or the quantity is large, we will communicate with you to determine the date.

Q: How is your quality?

A: We have obtained ISO9001:2015 certificate. From mold design, processing to assembly and mold testing, we will track the entire process and provide you with mold testing videos.

Q: How long does it take for us to get a quote?

A: After receiving the detailed information (your 2D/3D drawings or samples), we will give you a quotation within 24 hours.
