Kinematic Guidance Standards & Flow Stress Benchmarks
| Kinetic Evaluation Parameter | Designed Operational Value | Metrology Compliance | Diagnostic Instrumentation |
| Material Flow Stress Limit | Up to 650 MPa Tensile Range | ASTM E2448 | Dynamic Erichsen Tester |
| Guide Bushing Hardness | 64 – 66 HRC (Solid Carbide) | ISO 6507 | Micro-Vickers Tester |
| Clearance Uniformity Class | Within 0.008 mm Circumferential | ISO 1101 | Fiber-Optic Bore Gauge Array |
| Punch Corner Blend Radius | R0.5 mm – R8.0 mm Customizable | ISO 4287 | 3D Laser Profilometer |
| Nitrogen Charging Volume | 24,000 N Initial Force Rating | ISO 11901 | Digital Pressure Transducer |
| Die Set Concentricity Deviation | Under 0.01 mm per 500 mm Span | DIN 8606 | Electronic Level Dial Matrix |
Metallurgical Flow Control & Elastic Springback Mitigation
Dynamic Dispersion of Tensile Stress: The drawing cavity throat features a multi-radius variable curve engineered via crystalline slip-plane kinematics. This morphology allows high-tensile alloy sheets to transition smoothly from elastic compression to plastic flow, decreasing localized shear stress concentration and suppressing structural tearing during 45% elongation cycles.
Integrated Over-Bending Compensation Architecture: To counter the severe elastic recovery (springback) common in aluminum and high-strength steels, the punch geometry integrates a finite-element-optimized over-bending profile. The localized tooling surfaces apply a localized compressive strike at the bottom dead center (BDC), relieving residual internal stresses and maintaining final dimensional accuracy within $\pm0.02\text{mm}$.
Interfacial Solid-Lubricant Diffusion Layer: The working boundaries of the drawing matrix are enhanced with a multi-layered Physical Vapor Deposition (PVD) titanium aluminum nitride (TiAlN) coating. This creates a dense thermal barrier capable of withstanding local temperatures up to $800^{\circ}\text{C}$, preventing cold-welding adhesion and preserving a scuff-free finish on structural components.
Global Plant Deployment & Micro-Alignment Interfacing
Built to fit seamlessly into high-output, automated global manufacturing setups, each tooling module features standardized integration infrastructure:
Universal Guide-Pillar Standardization: All linear positioning elements utilize standardized ISO/DIN mechanical tolerances with automated ball-bearing guide cages, allowing for high-frequency strokes with zero thermal expansion locking.
Centralized Kinetic Monitoring System: Integrated into the lower die set are heavy-duty, non-contact proximity sensors linked to a localized industrial plug-and-play terminal. This interface communicates directly with the press PLC, arresting the stroke instantly if a misfeed or material overlap occurs.

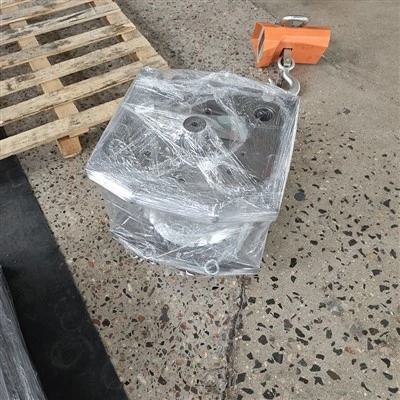

Seaworthy Protective Packaging: Exposed high-precision surfaces are covered with an eco-friendly hot-melt strippable plastic coating, wrapped in multi-layer anti-static VCI foil, and securely fastened inside heavy-duty, stackable steel-framed shipping crates with integrated forklift guide rails.
