Heavy Duty Custom Fabricated Stamping Mold For High Volume Manufacturing

Executive Summary

Operating as a globally recognized stamping die manufacturer, our company delivers advanced sheet metal forming solutions tailored for high-volume, structural components. We approach toolmaking from a full-lifecycle perspective-combining simulation-driven engineering, multi-axis precision machining, and comprehensive post-production maintenance support. Our engineering matrix satisfies the rigorous productivity requirements of the structural automotive, clean energy, commercial appliance, and industrial equipment sectors, transforming complex geometries into highly repeatable manufacturing realities.

Engineering & Tooling Blueprint

Advanced Technical Architecture & Structural Innovations

Our manufacturing paradigm focuses on maximizing production uptime and minimizing long-term tool wear through distinct technological enhancements:

Forming Simulation Mastery: Every project undergoes rigorous AutoForm analysis to accurately predict potential wrinkling, splits, and springback deviations. By optimizing the blank holder force and draw bead configuration virtually, we reduce physical modification loops by 80%.

Modular Insert Design: We implement highly precise, segmented insert systems for all high-wear areas of the die. This allows production facilities to swap out specific worn components within minutes directly on the press bed, preventing lengthy line shutdowns.

Integrated Sensor Technology: Upon request, smart sensory arrays (such as tonnage monitors and part-ejection proximity sensors) can be embedded into the tool structure to protect the die matrix from double-stamping damages during automated high-speed runs.

Operational Lifecycle & Validation Procedures

To ensure total seamless integration into your facility, our quality assurance matrix enforces strict stage-gate milestones:

Phase I: Metallurgical Verification

Every block of raw tool steel undergoes ultrasonic flaw detection and hardness verification post-heat treatment to eliminate risks of micro-cracking during long-term vibration stresses.

Phase II: High-Velocity Machining

Sub-elements are routed through climate-controlled wire cutting and 5-axis high-speed milling blocks to secure perfect alignment of punch-and-die clearance, especially vital for ultra-high-strength steel (UHSS) projects.

Phase III: Kinematic Press Trials

We subject the completed tool assembly to real-world stress runs matching the customer's stroke per minute (SPM) expectations. Strip layouts are carefully analyzed for tracking stability, pilot pin engagement, and progression accuracy.

Phase IV: Geometric Certification

Finished parts are scanned via optical blue-light systems to map the entire physical surface against the theoretical CAD model, yielding highly precise color-coded variance reports.

Export Transit and Technical Documentation

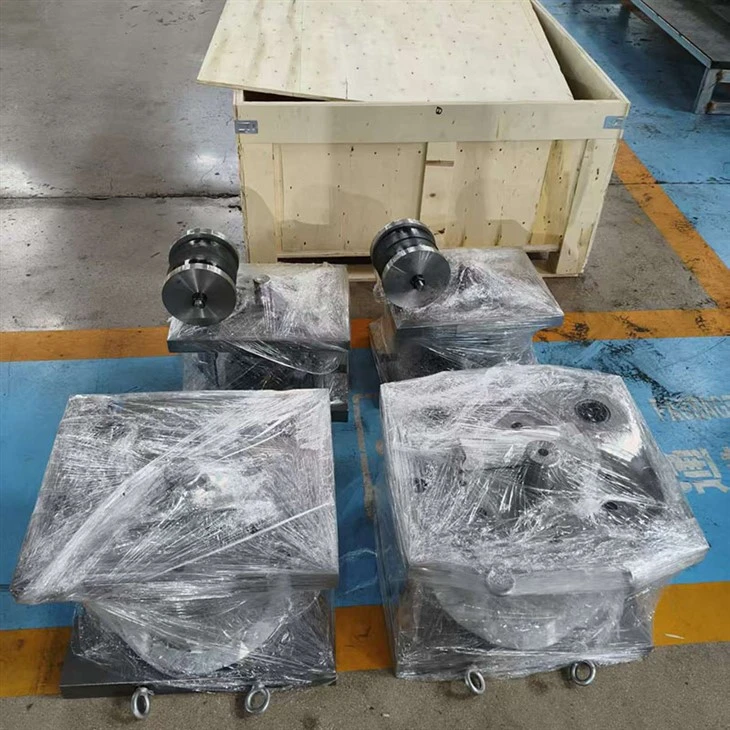

Preserving tool integrity across overseas shipping is a critical priority. All finished assemblies undergo structural deep-cleaning before being sprayed with professional-grade tactile rust preventatives. The entire tool block is wrapped in multiple layers of heavy industrial shrink wrap containing vapor corrosion inhibitors (VCI).

The tool is then safely lowered into reinforced, heavy-duty structural steel-framed wooden crates engineered to withstand crane hoisting stresses. A waterproof document capsule is secured to the interior lid, containing comprehensive material certificates, heat treatment charts, full metric 2D schematics, 3D native CAD files, and a comprehensive daily maintenance checklist for your shop floor team.
