Overview

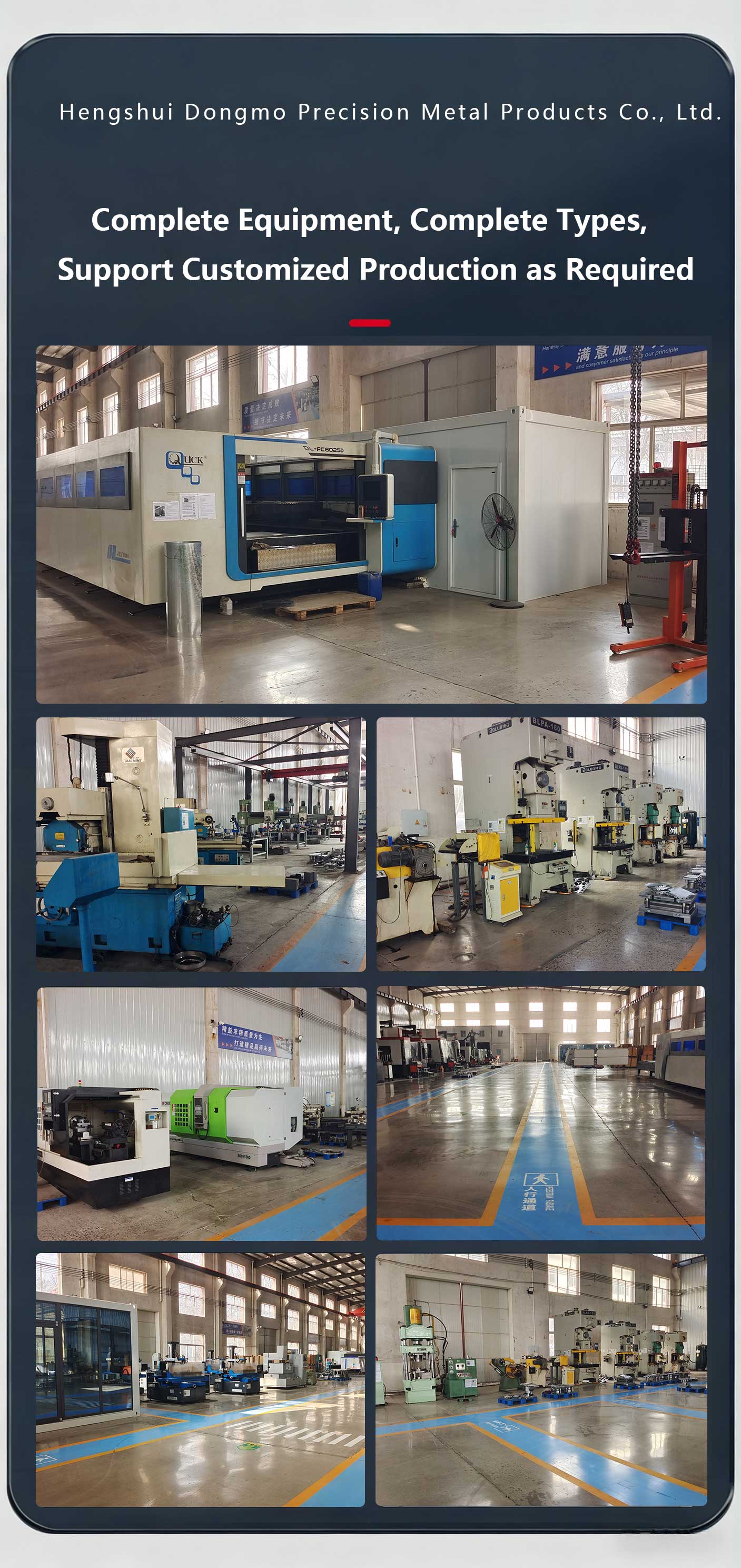

As a premier stamping die manufacturer with decades of industrial expertise, we specialize in delivering engineering excellence through custom tool and die solutions. Our manufacturing facility integrates advanced CNC machining, precision EDM wire cutting, and rigorous quality inspection to produce robust progressive, transfer, and single-stage stamping molds. We partner with global OEMs in automotive, electronics, aerospace, and home appliances, providing turnkey solutions from initial DFM analysis to final mass production testing.
Technical Specifications
| Parameter | Value / Specification |
| Die Type | Progressive Die, Stage Die, Transfer Die |
| Mold Material | SKD11, D2, DC53, Cr12MoV, ASP23 |
| Part Material | Stainless Steel, Aluminum, Brass, Carbon Steel, SPCC |
| Material Thickness | 0.2 mm - 6.0 mm |
| Die Life | 500,000 to 2,000,000 Strokes |
| Tolerance Precision | ±0.01 mm to ±0.02 mm |
| Surface Treatment | TD Coating, TICN, PVD, Nitriding |
| Press Capacity | 25T to 800T |
| Design Software | Auto CAD, SolidWorks, UG (NX), Pro/E |
| Certification | ISO 9001:2015, IATF 16949 |
Engineering Capabilities & Production Standards

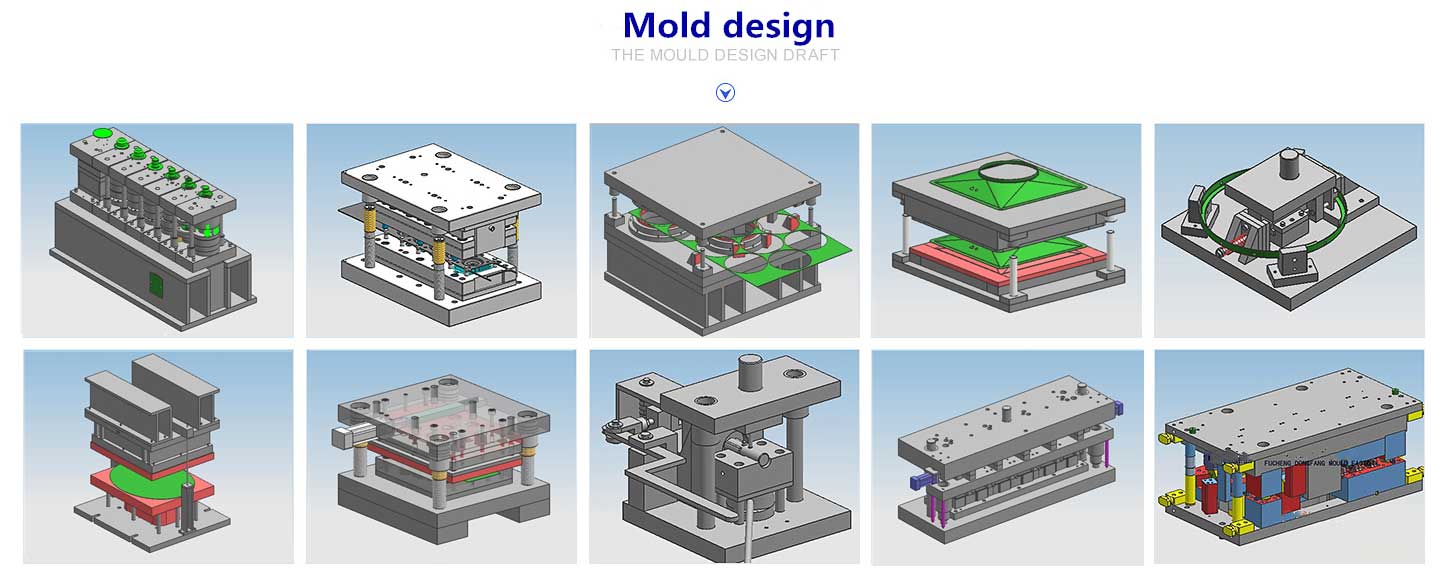

Our engineering division comprises senior tool designers utilizing cutting-edge simulation software to analyze material flow, springback, and thinning rates before steel cutting begins. This proactive approach eliminates structural errors and minimizes lead times.
Material Integrity: We source premium tool steel exclusively from certified mills, ensuring excellent wear resistance and thermal stability during high-speed production runs.
Machining Precision: Utilizing high-speed CNC centers and Sodick wire EDM machines, we maintain strict tolerance controls, which directly translates to extended die lifespans and superior part consistency.
Component Standardization: Incorporating internationally recognized standard components (such as MISUMI, FIBRO, and PUNCH) guarantees effortless maintenance and global compatibility for spare parts replacement.
Quality Control and Validation Protocol

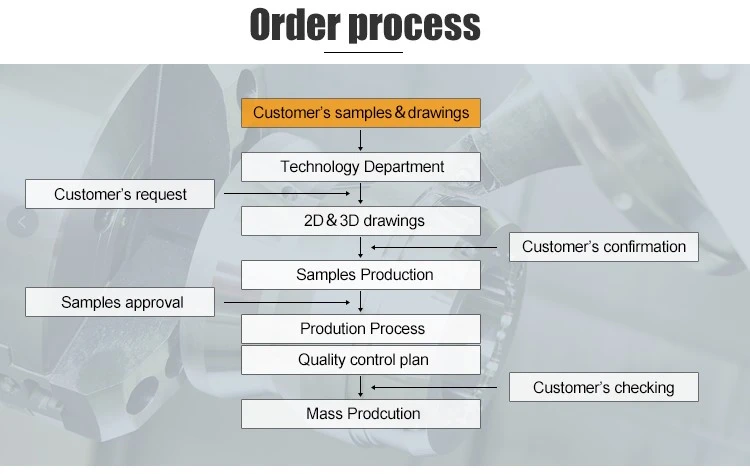

Quality is deeply embedded in our manufacturing workflow. Every stamping die undergoes a comprehensive verification process prior to shipment:
Design Review (DFM): In-depth evaluation of part geometry, nesting layout, and tonnage requirements.
In-Process Inspection: Real-time CMM measurement of critical inserts, punch blocks, and die beds.
Die Trial (T1-T3): On-site press trials replicating actual customer production environments to optimize feeding, strip layout, and ejection.
Sample Approval: Delivery of initial sample inspection reports (ISIR) and full dimensional data layouts to customers for formal sign-off.
Pre-Shipment Audit: Complete checklist verification including anti-rust coating application, safety locking mechanism installation, and comprehensive structural documentation packaging.
Packaging & International Logistics
To ensure your tooling arrives in pristine condition, we implement robust export packaging standards. Each die set is thoroughly coated with industrial anti-rust oil, wrapped in heavy-duty vacuum protective film, and secured inside a customized, fumigation-free solid wooden crate. Heavy-duty steel corner protectors and structural reinforcement bars are integrated to withstand maritime transit stress. Comprehensive technical documents, including 2D/3D assembly drawings, strip layouts, component lists, and maintenance guidelines, are safely enclosed within the shipment.
